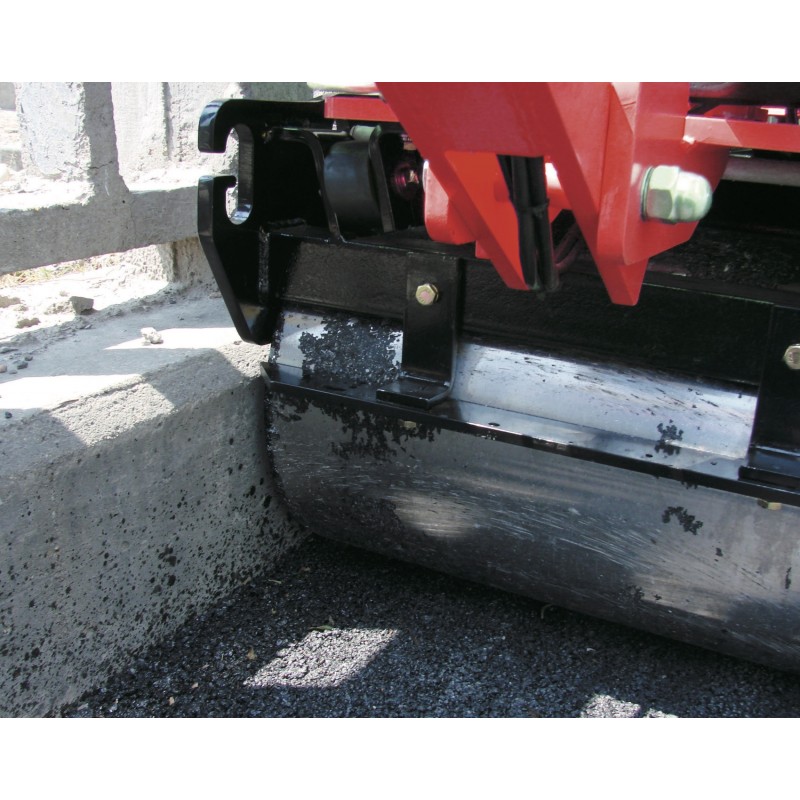

Low-Overhang for Compaction Right Up to the Edge of Curbside
ROL450
Low-Overhang for Compaction Right Up to the Edge of Curbside
ROL450

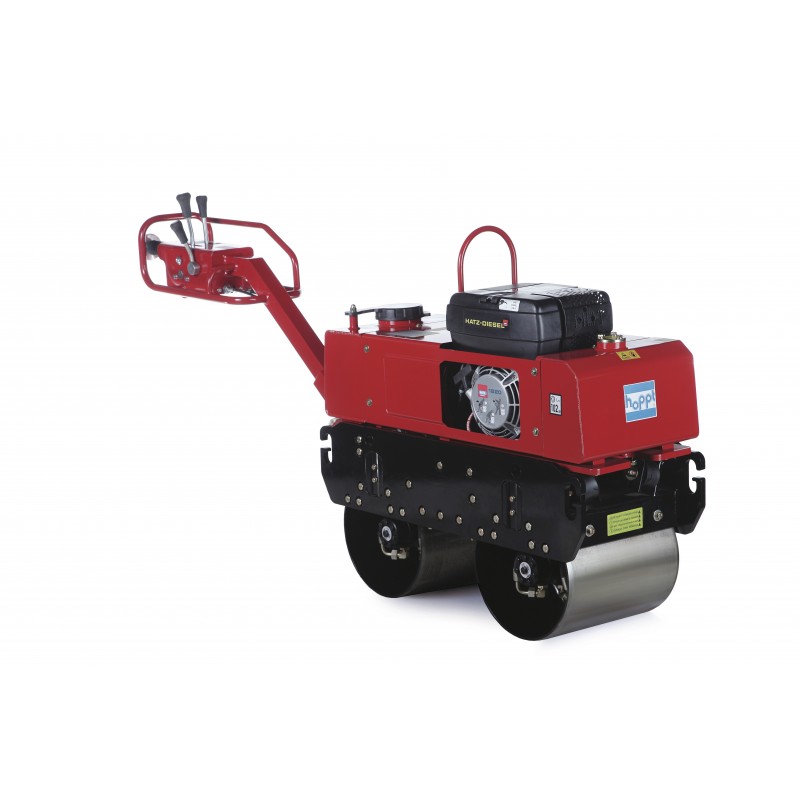

ROL450 - Walk-Behind Dual Directional Vibratory Rollers

In places and job sites whereby petrol engines are not desirable, we at HOPPT® offered the solution by introducing our latest diesel Powered range of equipment specially built to cater for different market needs.

Make an Enquiry
Share
Specifications
ROL450
Machine Dimension – L x W x H (mm) 2,225 x 436 x 1,185
Drum Size – D x W (mm) 356 x 390
Operating Weight (kg) 510
Centrifugal Force – kgf (kN) 2,040 (20)
Vibration Frequency – Hz (vpm) 43 (2,580)
Gradeability (°) 25
Maximum Working Speed (km/h) 2.7
Water Tank Capacity (L) 15
Hydraulic Oil Tank (L) 12
Engine Options Hatz 1B20 @ 3.5kW 4-Stroke Diesel (Recoil-Start)
More Info

• HOPPT® offers FIVE models of Walk-Behind Vibratory Rollers.

• Four of which are Double-Drum Dual-Directional Vibratory Rollers and are fitted with DAN FOSS® Hydraulic system for easy manoeuvring and maintenance. One is a Single-Drum Model.

• All rollers are ergonomically-engineered with such details that ensure optimum comfort and maximum productivity. All rollers are fitted with either single or twin­exciter and twin eccentric masses, which delivers high centrifugal force.

• All models come in mechanical clutch as standard feature.

• Compaction can also be done right up to the edge of the curbside, thus saving time and money for additional work.

Related products
No items
Other products from same category
ROL550 ROL550
View details

  • Machine Dimension – L x W x H (mm): 2,295 x 630 x 1,115
  • Drum Size – D x W (mm): 356 x 605
  • Operating Weight (kg): 565
  • Centrifugal Force – kgf (kN): 900 (8.8)
  • Vibration Frequency – Hz (vpm): 55 (3,300)
Machine Dimension – L x W x H (mm) Drum Size – D x W (mm) Operating Weight (kg) Centrifugal Force – kgf (kN) Vibration Frequency – Hz (vpm)
2,295 x 630 x 1,115 356 x 605 565 900 (8.8) 55 (3,300)
In places and job sites whereby petrol engines are not desirable, we at HOPPT® offered the solution by introducing our latest diesel Powered range of equipment specially built to cater for different market needs.
View details
View details
ROL650 ROL650
View details

  • Machine Dimension – L x W x H (mm): 2,385 x 700 x 1,150
  • Drum Size – D x W (mm): 402 x 650
  • Operating Weight (kg): 675
  • Centrifugal Force – kgf (kN): 1,100 (10.8)
  • Vibration Frequency – Hz (vpm): 55 (3,300)
Machine Dimension – L x W x H (mm) Drum Size – D x W (mm) Operating Weight (kg) Centrifugal Force – kgf (kN) Vibration Frequency – Hz (vpm)
2,385 x 700 x 1,150 402 x 650 675 1,100 (10.8) 55 (3,300)
In places and job sites whereby petrol engines are not desirable, we at HOPPT® offered the solution by introducing our latest diesel Powered range of equipment specially built to cater for different market needs.
View details
View details
ROL800 (Twin-Exciter) - Walk-Behind Dual Directional Vibratory Rollers ROL800 (Twin-Exciter) - Walk-Behind Dual Directional Vibratory Rollers
View details

  • Machine Dimension – L x W x H (mm): 2,465 x 754 x 1,170
  • Drum Size – D x W (mm): 402 x 700
  • Operating Weight (kg): 830
  • Centrifugal Force – kgf (kN): 2,243 (22.0)
  • Vibration Frequency – Hz (vpm): 55 (3,300)
Machine Dimension – L x W x H (mm) Drum Size – D x W (mm) Operating Weight (kg) Centrifugal Force – kgf (kN) Vibration Frequency – Hz (vpm)
2,465 x 754 x 1,170 402 x 700 830 2,243 (22.0) 55 (3,300)
• Specially-Designed TWIN-EXCITER System, creating a very powerful 22.0kn centrifugal force. • Powered by the German-made HATZ® 1 B40 Diesel Engines and the Durable Japan­made KUBOTA® EA330 Diesel Engines that...
