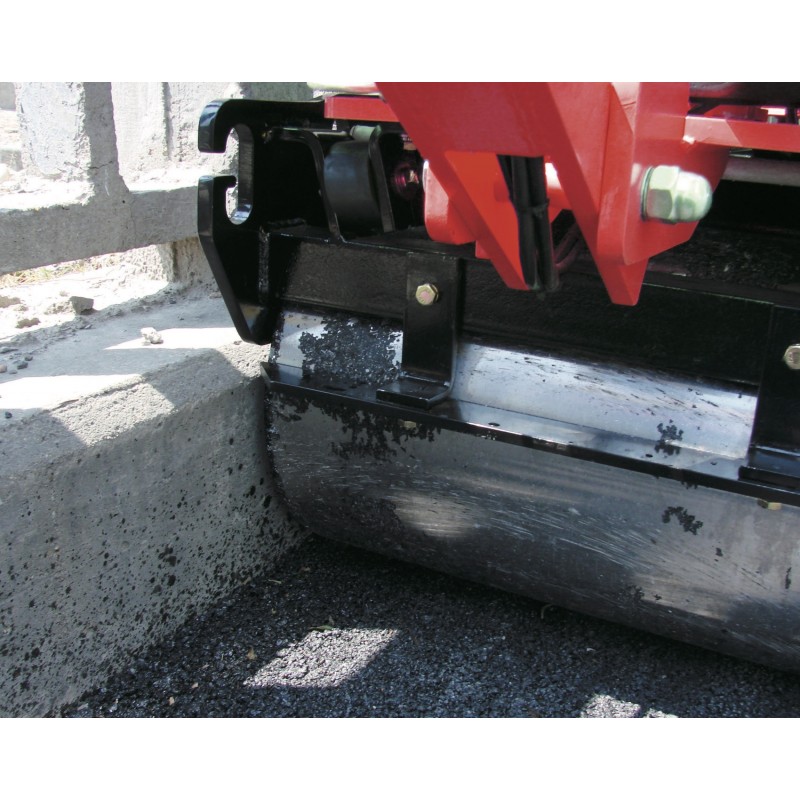

Low-Overhang for Compaction Right Up to the Edge of Curbside

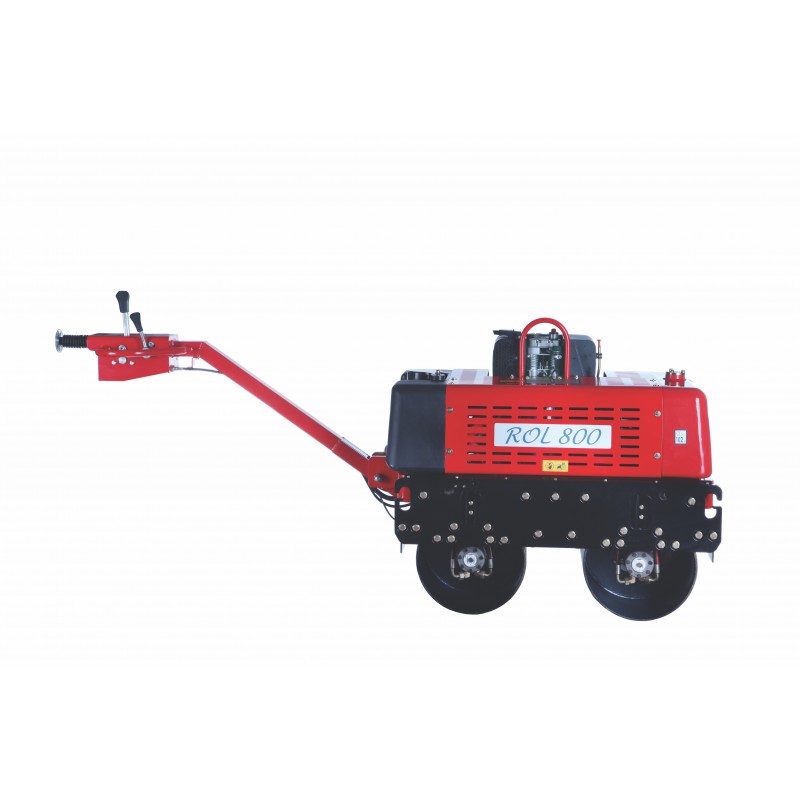

ROL800 (Twin-Exciter) - Walk-Behind Dual Directional Vibratory Rollers

ROL800 with KUBOTA® EA330, Electric-Start

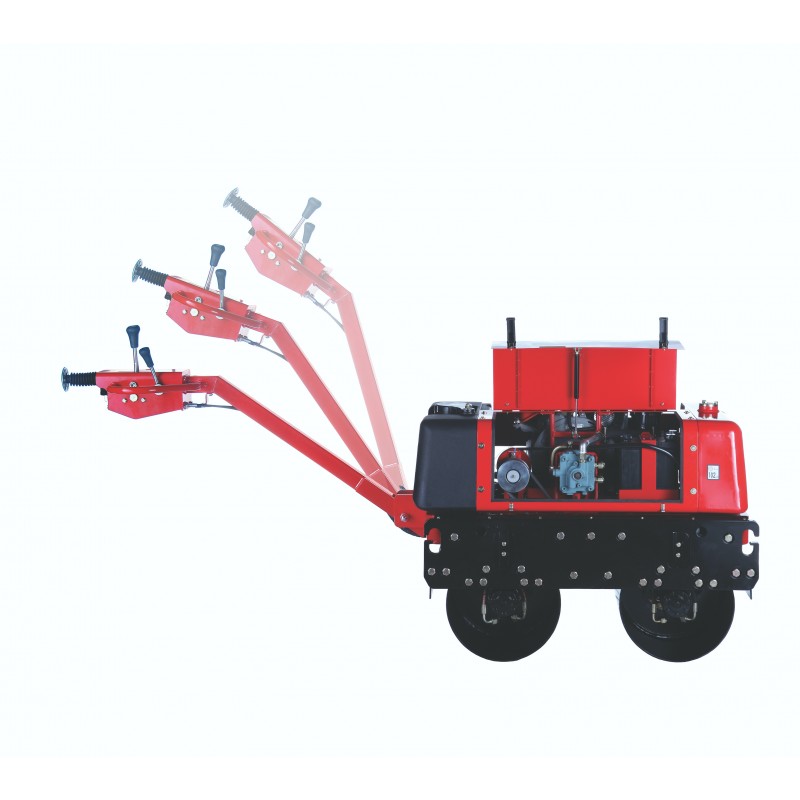

ROL800 (Twin-Exciter) - Walk-Behind Dual Directional Vibratory Rollers

• Specially-Designed TWIN-EXCITER System, creating a very powerful 22.0kn centrifugal force.

• Powered by the German-made HATZ® 1 B40 Diesel Engines and the Durable Japanmade KUBOTA® EA330 Diesel Engines that complies with:

• EPA Tier-4 Emissions Regulations Standard Exerting Durable Power with a Three Vortex Combustion System (TVCS), which provides Stable Performance even at high engine rpm and an ideal mixture of air and fuel to ensure low-fuel consumption.

• Therefore, ensuring work goes smoothly and steadily.

• In enclosed areas where petrol is restricted.

Make an Enquiry

Specifications

Reference ROL800

Machine Dimension – L x W x H (mm)	2,465 x 754 x 1,170
Drum Size – D x W (mm)	402 x 700
Operating Weight (kg)	830
Centrifugal Force – kgf (kN)	2,243 (22.0)
Vibration Frequency – Hz (vpm)	55 (3,300)
Gradeability (°)	25
Maximum Working Speed (km/h)	3.6
Water Tank Capacity (L)	47
Hydraulic Oil Tank (L)	30
Engine Options	HATZ 1B40@7.3kW (9.3hp) 4-Stroke Diesel (Recoil & Electric-Start) Kubota EA330@5.15kW(6.9hp), 4-stroke Diesel (Electric Start)

More Info

• HOPPT® offers FIVE models of Walk-Behind Vibratory Rollers.

• Four of which are Double-Drum Dual-Directional Vibratory Rollers and are fitted with DAN FOSS® Hydraulic system for easy manoeuvring and maintenance. One is a Single-Drum Model.

• All rollers are ergonomically-engineered with such details that ensure optimum comfort and maximum productivity. All rollers are fitted with either single or twinexciter and twin eccentric masses, which delivers high centrifugal force.

• All models come in mechanical clutch as standard feature, with electro-magnetic clutch as an option on ROL800.

• Compaction can also be done right up to the edge of the curbside, thus saving time and money for additional work.

RAM60B

ROL450 - Walk-Behind Dual Directional Vibratory Rollers

Machine Dimension – L x W x H (mm): 2,225 x 436 x 1,185
Drum Size – D x W (mm): 356 x 390
Operating Weight (kg): 510
Centrifugal Force – kgf (kN): 2,040 (20)
Vibration Frequency – Hz (vpm): 43 (2,580)

Machine Dimension – L x W x H (mm)	Drum Size – D x W (mm)	Operating Weight (kg)	Centrifugal Force – kgf (kN)	Vibration Frequency – Hz (vpm)
2,225 x 436 x 1,185	356 x 390	510	2,040 (20)	43 (2,580)

In places and job sites whereby petrol engines are not desirable, we at HOPPT® offered the solution by introducing our latest diesel Powered range of equipment specially built to cater for different market needs.

View details

ROL550 - Walk-Behind Dual Directional Vibratory Rollers

Machine Dimension – L x W x H (mm): 2,295 x 630 x 1,115
Drum Size – D x W (mm): 356 x 605
Operating Weight (kg): 565
Centrifugal Force – kgf (kN): 900 (8.8)
Vibration Frequency – Hz (vpm): 55 (3,300)

Machine Dimension – L x W x H (mm)	Drum Size – D x W (mm)	Operating Weight (kg)	Centrifugal Force – kgf (kN)	Vibration Frequency – Hz (vpm)
2,295 x 630 x 1,115	356 x 605	565	900 (8.8)	55 (3,300)

View details

ROL650 - Walk-Behind Dual Directional Vibratory Rollers

Machine Dimension – L x W x H (mm): 2,385 x 700 x 1,150
Drum Size – D x W (mm): 402 x 650
Operating Weight (kg): 675
Centrifugal Force – kgf (kN): 1,100 (10.8)
Vibration Frequency – Hz (vpm): 55 (3,300)

Machine Dimension – L x W x H (mm)	Drum Size – D x W (mm)	Operating Weight (kg)	Centrifugal Force – kgf (kN)	Vibration Frequency – Hz (vpm)
2,385 x 700 x 1,150	402 x 650	675	1,100 (10.8)	55 (3,300)

View details
