ROL550 - Walk-Behind Dual Directional Vibratory Rollers

In places and job sites whereby petrol engines are not desirable, we at HOPPT® offered the solution by introducing our latest diesel Powered range of equipment specially built to cater for different market needs.

Specifications
ROL550
Machine Dimension – L x W x H (mm) 2,295 x 630 x 1,115
Drum Size – D x W (mm) 356 x 605
Operating Weight (kg) 565
Centrifugal Force – kgf (kN) 900 (8.8)
Vibration Frequency – Hz (vpm) 55 (3,300)
Gradeability (°) 25
Maximum Working Speed (km/h) 3.6
Water Tank Capacity (L) 35
Hydraulic Oil Tank (L) 21
Engine Options Honda GX270 @ 6.6kW (9.0hp) 4-Stroke Petrol (Recoil-Start)
Kubota E75@4.8kW(6.5hp), 4-stroke Diesel (Crank & Electric Start)
More Info

HOPPT® offers FIVE models of Walk-Behind Vibratory Rollers.

Four of which are Double-Drum Dual-Directional Vibratory Rollers and are fitted with DAN FOSS® Hydraulic system for easy manoeuvring and maintenance. One is a Single-Drum Model.

All rollers are ergonomically-engineered with such details that ensure optimum comfort and maximum productivity. All rollers are fitted with either single or twin­exciter and twin eccentric masses, which delivers high centrifugal force.

All models come in mechanical clutch as standard feature.

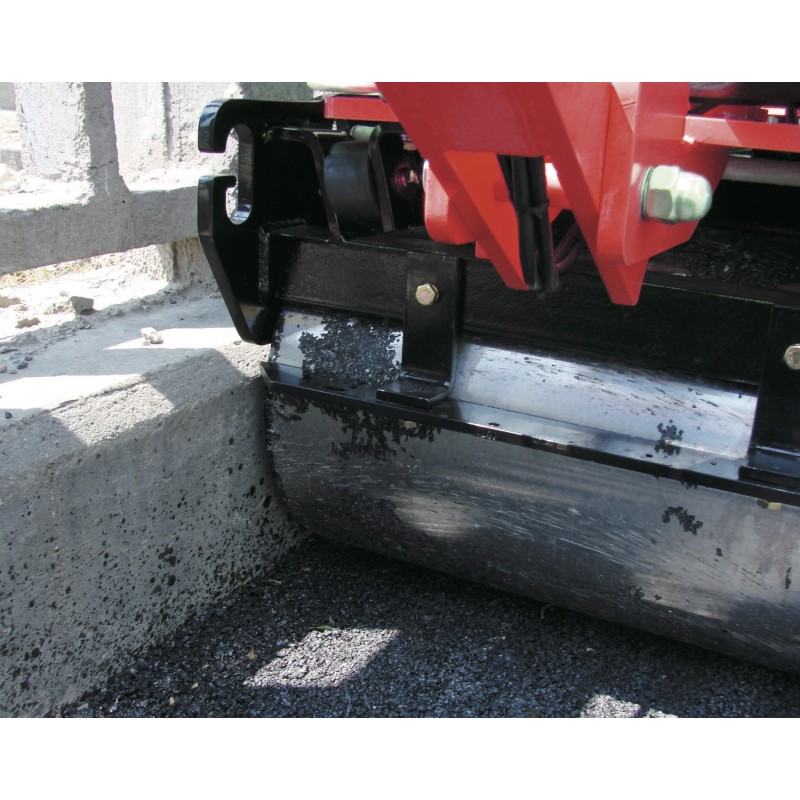

Compaction can also be done right up to the edge of the curbside, thus saving time and money for additional work.

Related products
No items
Other products from same category
  • Machine Dimension – L x W x H (mm): 2,465 x 754 x 1,170
  • Drum Size – D x W (mm): 402 x 700
  • Operating Weight (kg): 830
  • Centrifugal Force – kgf (kN): 2,243 (22.0)
  • Vibration Frequency – Hz (vpm): 55 (3,300)
Machine Dimension – L x W x H (mm) Drum Size – D x W (mm) Operating Weight (kg) Centrifugal Force – kgf (kN) Vibration Frequency – Hz (vpm)
2,465 x 754 x 1,170 402 x 700 830 2,243 (22.0) 55 (3,300)
• Specially-Designed TWIN-EXCITER System, creating a very powerful 22.0kn centrifugal force. • Powered by the German-made HATZ® 1 B40 Diesel Engines and the Durable Japan­made KUBOTA® EA330 Diesel Engines that...
  • Machine Dimension – L x W x H (mm): 2,225 x 436 x 1,185
  • Drum Size – D x W (mm): 356 x 390
  • Operating Weight (kg): 510
  • Centrifugal Force – kgf (kN): 2,040 (20)
  • Vibration Frequency – Hz (vpm): 43 (2,580)
Machine Dimension – L x W x H (mm) Drum Size – D x W (mm) Operating Weight (kg) Centrifugal Force – kgf (kN) Vibration Frequency – Hz (vpm)
2,225 x 436 x 1,185 356 x 390 510 2,040 (20) 43 (2,580)
In places and job sites whereby petrol engines are not desirable, we at HOPPT® offered the solution by introducing our latest diesel Powered range of equipment specially built to cater for different market needs.
  • Machine Dimension – L x W x H (mm): 2,385 x 700 x 1,150
  • Drum Size – D x W (mm): 402 x 650
  • Operating Weight (kg): 675
  • Centrifugal Force – kgf (kN): 1,100 (10.8)
  • Vibration Frequency – Hz (vpm): 55 (3,300)
Machine Dimension – L x W x H (mm) Drum Size – D x W (mm) Operating Weight (kg) Centrifugal Force – kgf (kN) Vibration Frequency – Hz (vpm)
2,385 x 700 x 1,150 402 x 650 675 1,100 (10.8) 55 (3,300)
In places and job sites whereby petrol engines are not desirable, we at HOPPT® offered the solution by introducing our latest diesel Powered range of equipment specially built to cater for different market needs.
