Low-Overhang for Compaction Right Up to the Edge of Curbside
ROL650

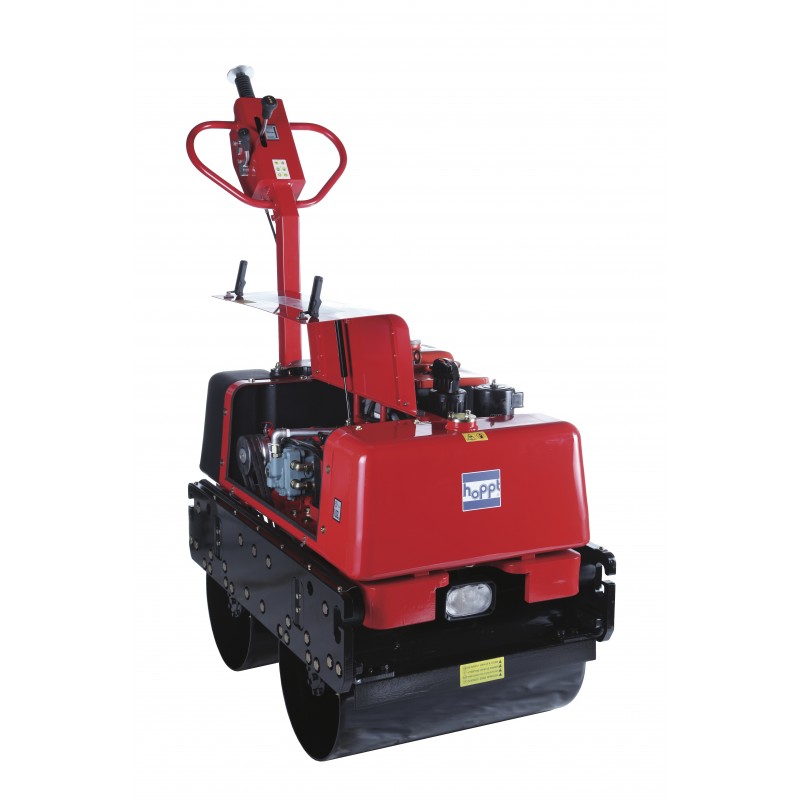

ROL650 - Walk-Behind Dual Directional Vibratory Rollers
Low-Overhang for Compaction Right Up to the Edge of Curbside
ROL650
ROL650 - Walk-Behind Dual Directional Vibratory Rollers

ROL650 - Walk-Behind Dual Directional Vibratory Rollers

In places and job sites whereby petrol engines are not desirable, we at HOPPT® offered the solution by introducing our latest diesel Powered range of equipment specially built to cater for different market needs.

Make an Enquiry
Share
Specifications
ROL650
Machine Dimension – L x W x H (mm) 2,385 x 700 x 1,150
Drum Size – D x W (mm) 402 x 650
Operating Weight (kg) 675
Centrifugal Force – kgf (kN) 1,100 (10.8)
Vibration Frequency – Hz (vpm) 55 (3,300)
Gradeability (°) 25
Maximum Working Speed (km/h) 3.6
Water Tank Capacity (L) 47
Hydraulic Oil Tank (L) 30
Engine Options Hatz 1B40@7.3kW (9.3hp) 4-Stroke Diesel (Recoil & Electric-Start)
Honda GX390 @ 8.7kW (11.7hp) 4-Stroke Petrol (Recoil-Start)
Kubota E75@4.8kW(6.5hp), 4-stroke Diesel (Crank & Electric Start)
More Info

• HOPPT® offers FIVE models of Walk-Behind Vibratory Rollers.

• Four of which are Double-Drum Dual-Directional Vibratory Rollers and are fitted with DAN FOSS® Hydraulic system for easy manoeuvring and maintenance. One is a Single-Drum Model.

• All rollers are ergonomically-engineered with such details that ensure optimum comfort and maximum productivity. All rollers are fitted with either single or twin­exciter and twin eccentric masses, which delivers high centrifugal force.

• All models come in mechanical clutch as standard feature.

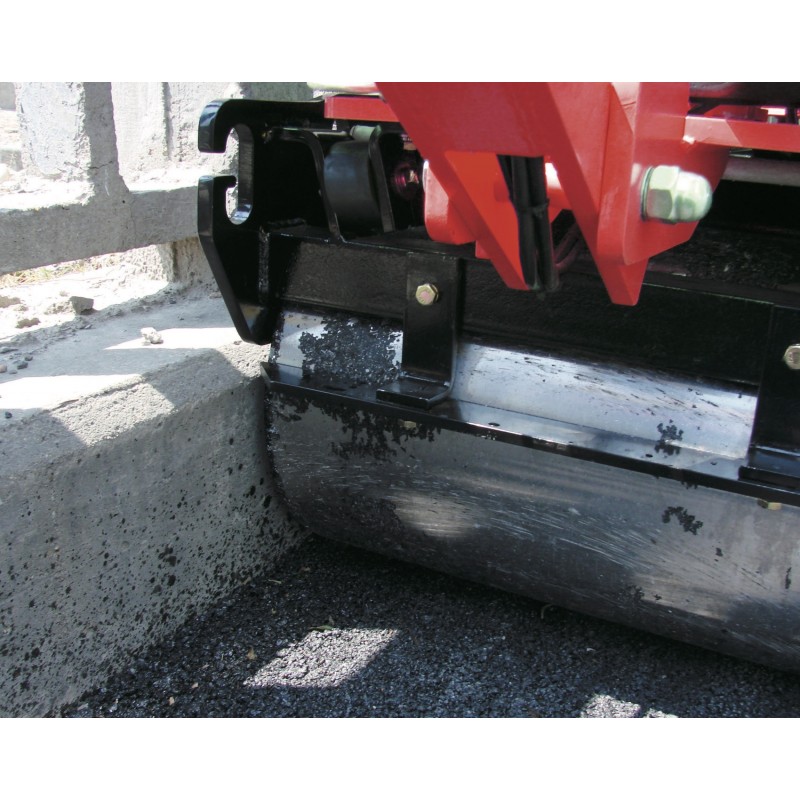

• Compaction can also be done right up to the edge of the curbside, thus saving time and money for additional work.
