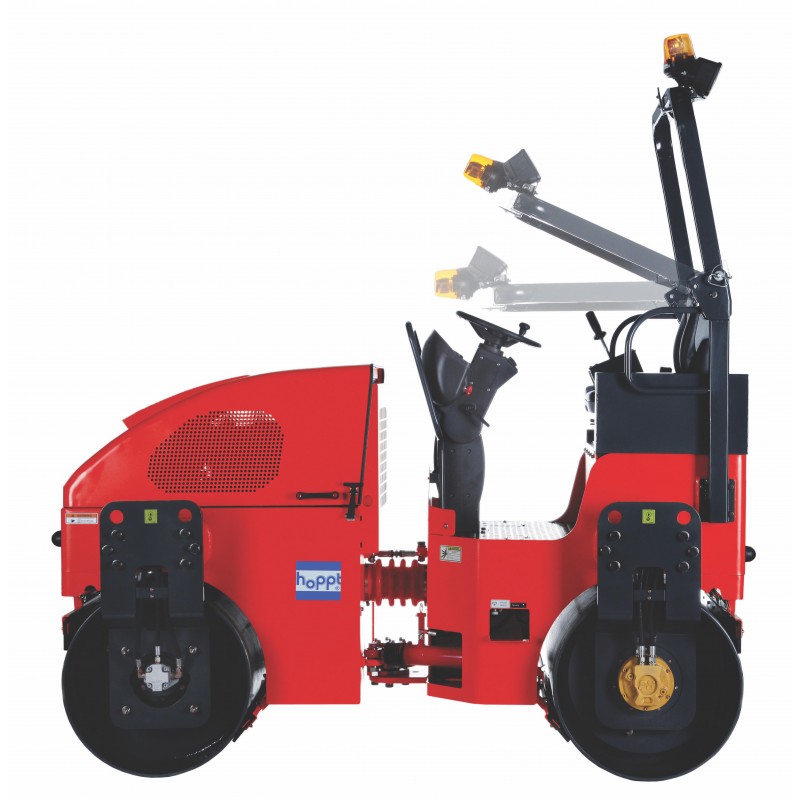

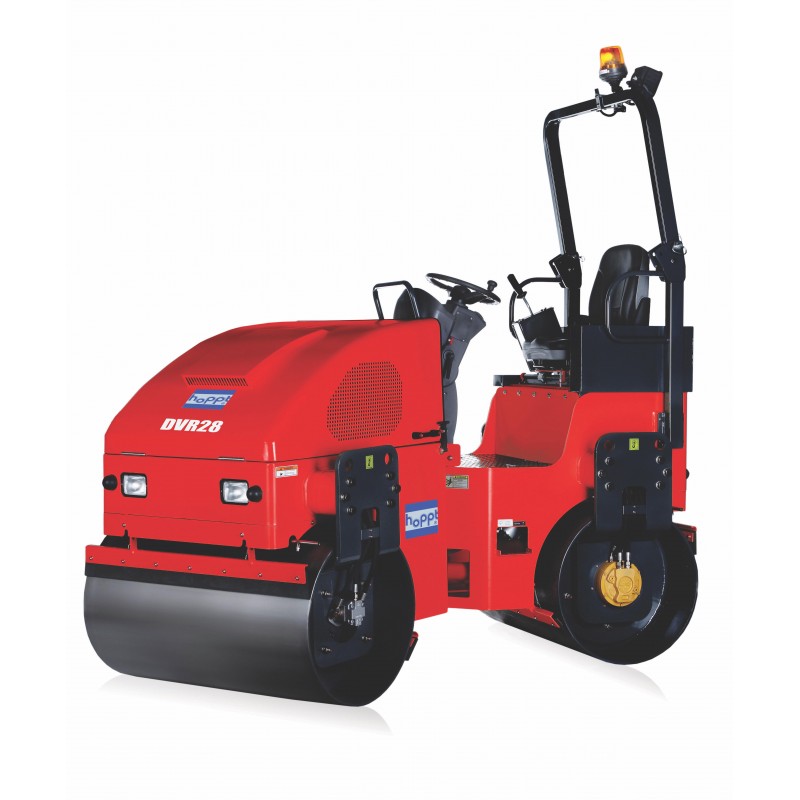

DVR28 - 3.0 Tonne Ride-On Vibratory Rollers
DVR28
| Machine Dimension – L x W x H (mm) | 2,095 x 980 x 2,568 |
|---|---|
| Drum Size – D x W (mm) | Width (900) Option(1000), Diameter (560), Shell Thickness (15) Side Clearance (40), Curb Clearance (337), Chamfered Edge Finishing |
| Operating Weight (kg) | 1,730 |
| Centrifugal Force (kN) | 16 |
| Vibration Frequency – Hz (vpm) | 66.7 (4,200) |
| Water Tank Capacity (L) | 110 |
| Hydraulic Oil Tank (L) | 30 |
| Fuel Tank Capacity (L) | 31 |
| Maximum Speed (km/h) | 10- Highest Speed |
| Height - Top of the Steering Wheel (mm) | 1,534 |
| Height - Top of the ROPS (mm) | 2,568 |
| Shipping Weight (kg) | 1,790 |
| Drum Weight (kg) | Static Front and Rear - 376 |
| Drum Wiper Type | Spring-Loaded Self-Adjusting Steel Wiper |
| Vibrating System | Nominal Amplitude 0.4, Gear Pump- POCLAIN® Hydraulics, FRANCE, Motors- CASAPPA®, ITALY |
| Vibrating Drums | Front/Both |
| Propulsion | DRUM DRIVE - Axial Piston Puump with Variable Displacement and 2 Radial Piston Motors from POCLAIN® Hydraulics, FRANCE |
| Brakes - Gradability (Theoretical) | 35° PARKING - SAHR (Spring-Applied Hydraulically Released) |
| Steering System and Design | 1 Cyclinder, Double-Acting Hydraulic System with a Maintenance-Free centre Pivot Articulation of ±30° Outside Turning Radius - 3,100 mm |
| Water System | Pressurised Electric Diaphragm Pump. Filters of 100 Mesh Screen@ Nozzle with 80 Mesh in-Line |
