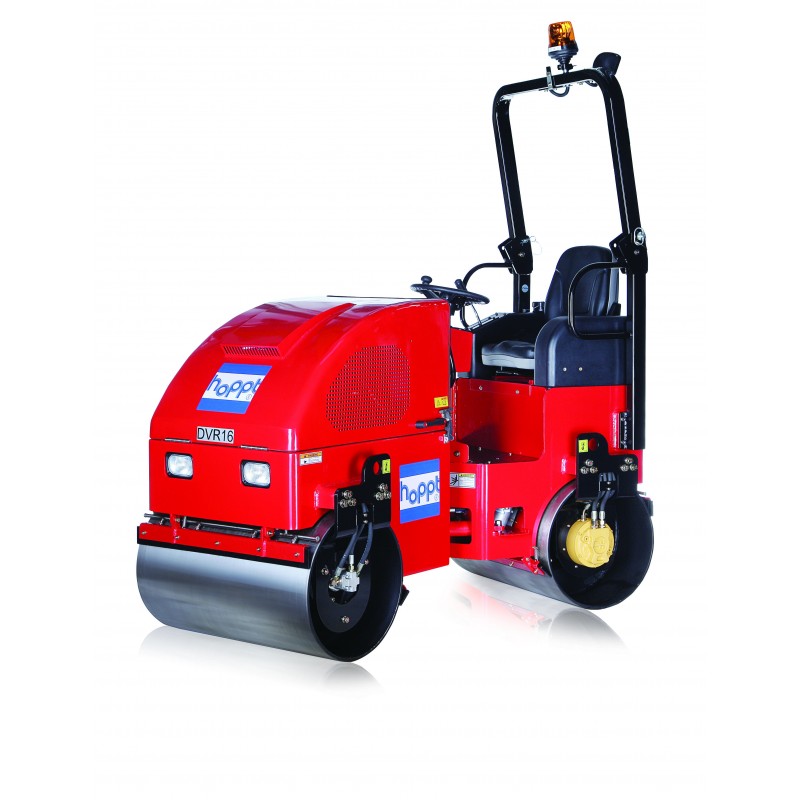

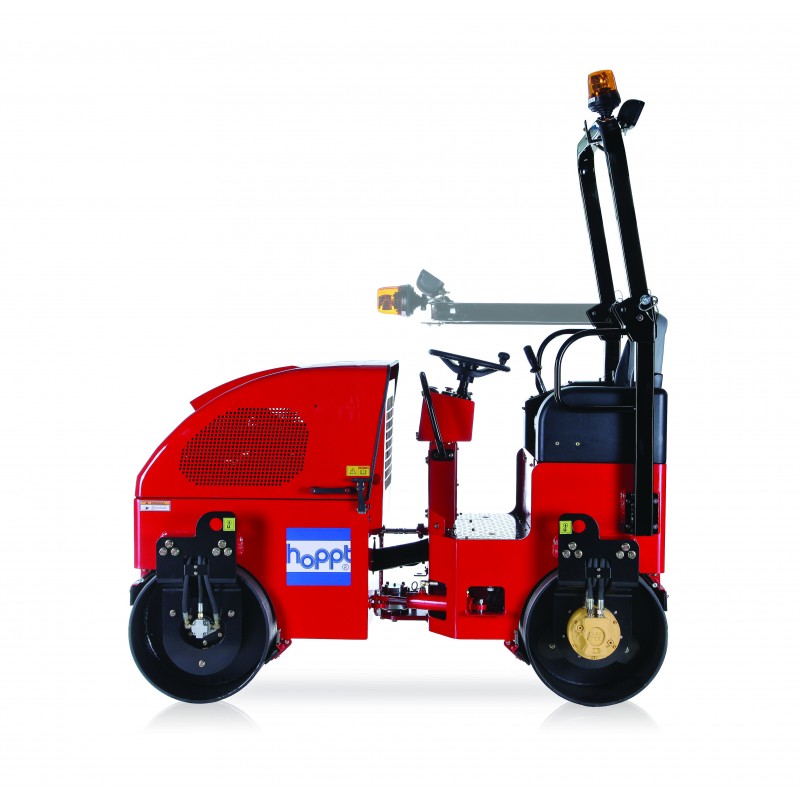

DVR16 - 1.5 Tonne Ride-On Vibratory Rollers
DVR16
| Machine Dimension – L x W x H (mm) | 2,095 x 980 x 2,568 |
|---|---|
| Drum Size – D x W (mm) | Width (900) Option(1000), Diameter (560), Shell Thickness (15) Side Clearance (40), Curb Clearance (337), Chamfered Edge Finishing |
| Operating Weight (kg) | 1,730 |
| Centrifugal Force (kN) | 16 |
| Vibration Frequency – Hz (vpm) | 66.7 (4,200) |
| Water Tank Capacity (L) | 110 |
| Hydraulic Oil Tank (L) | 30 |
| Fuel Tank Capacity (L) | 31 |
| Maximum Speed (km/h) | 10- Highest Speed |
| Height - Top of the Steering Wheel (mm) | 1,534 |
| Height - Top of the ROPS (mm) | 2,568 |
| Shipping Weight (kg) | 1,790 |
| Drum Weight (kg) | Static Front and Rear - 376 |
| Drum Wiper Type | Spring-Loaded Self-Adjusting Steel Wiper |
| Vibrating System | Nominal Amplitude 0.4, Gear Pump- POCLAIN® Hydraulics, FRANCE, Motors- CASAPPA®, ITALY |
| Vibrating Drums | Front/Both |

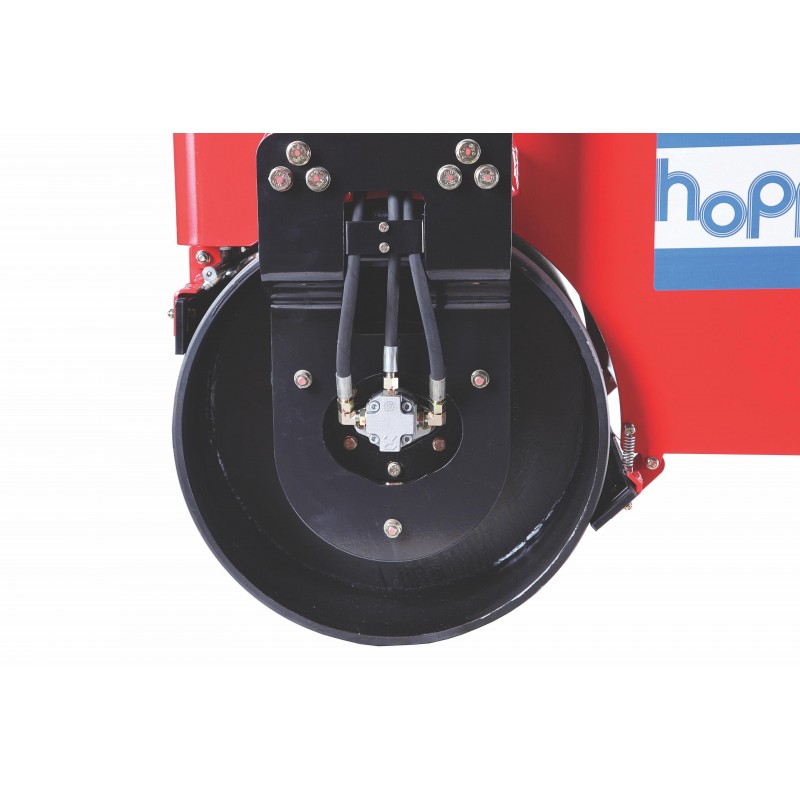

| Propulsion | DRUM DRIVE - Axial Piston Puump with Variable Displacement and 2 Radial Piston Motors from POCLAIN® Hydraulics, FRANCE |
| Brakes - Gradability (Theoretical) | 35° PARKING - SAHR (Spring-Applied Hydraulically Released) |
| Steering System and Design | 1 Cyclinder, Double-Acting Hydraulic System with a Maintenance-Free centre Pivot Articulation of ±30° Outside Turning Radius - 3,100 mm |
| Water System | Pressurised Electric Diaphragm Pump. Filters of 100 Mesh Screen@ Nozzle with 80 Mesh in-Line |
Hoppt® DVR16s have received very good response and commendations from our customers, since its initial launch in 2012. With ease of maintenance, good performance, reliability, versatility, productivity and comfort as our standard design guidelines, we have fulfilled the expectations of our customers. All features are ergonomically-engineered with such details the ensure optimum comfort and maximum productivity.
