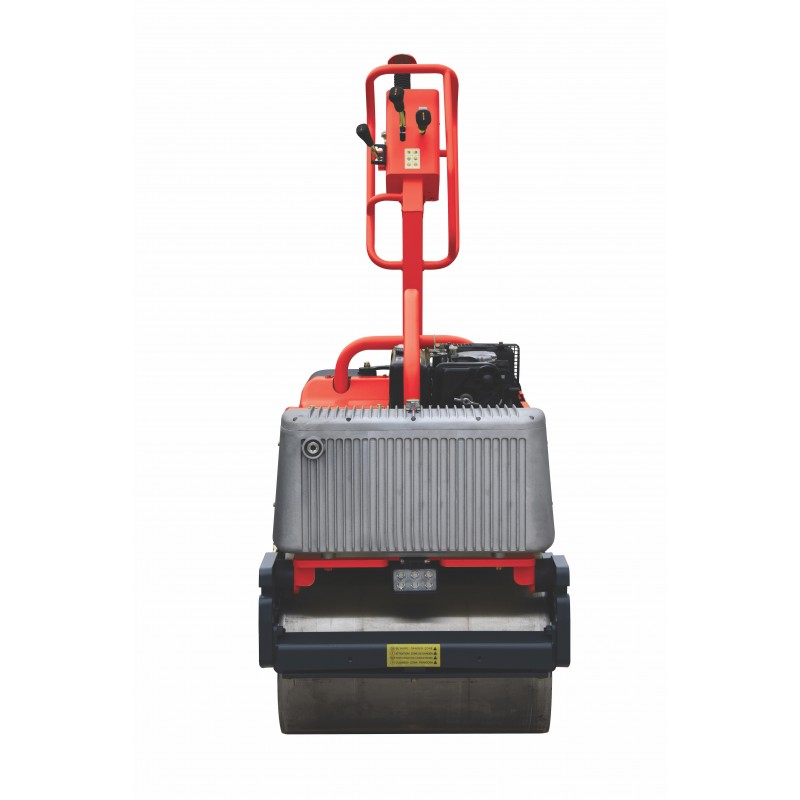

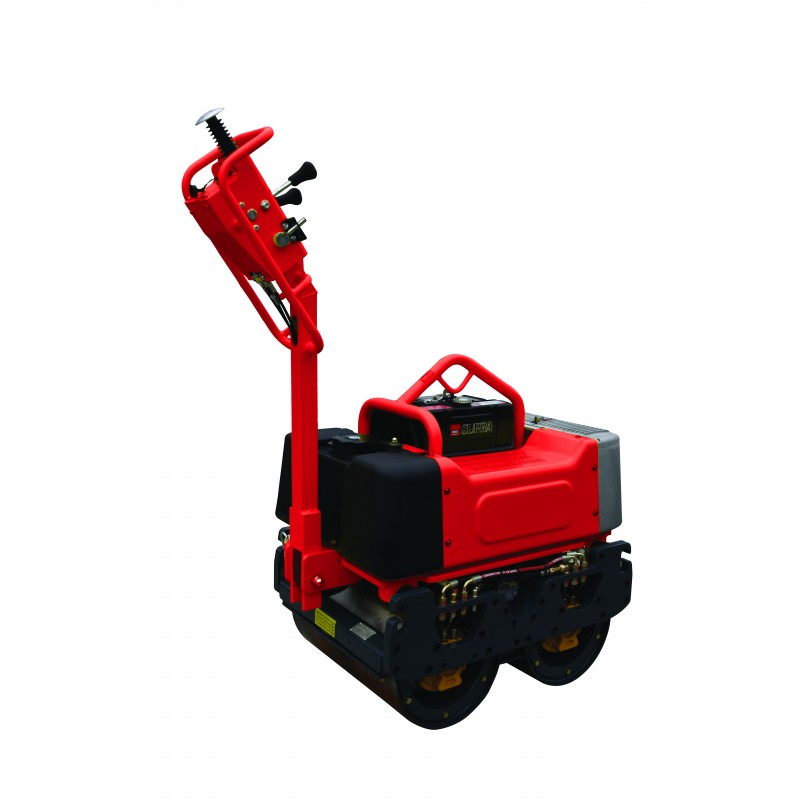

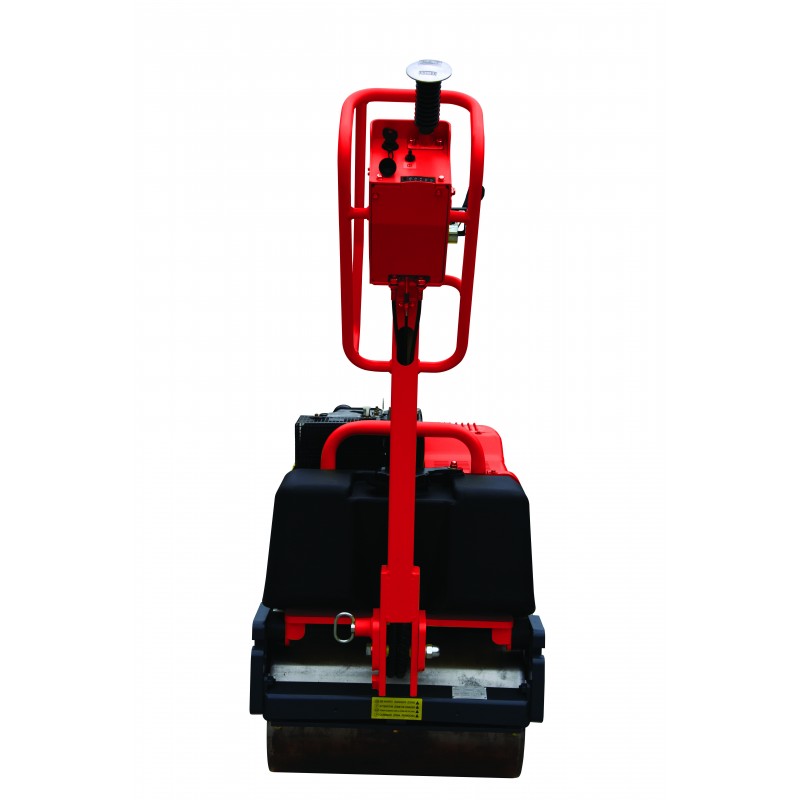

ROL7OO-Hydrostatic Duplex Roller-Double Amplitude
Features and Benefits:
• Two large Poclain hydraulic drive pumps and a vibration pump from Sauer Danfoss
• Air-cooled HATZ diesel engine: powerful and environmentally friendly.
• Hydrostatic drive and vibration system.
• Hydrostatic adjustable excentric weights that are productive in both soil and asphalt applications.
• Hydraulic pump for hydrostatic drive and steering: no V-belt or clutch.
• Ergonomic vibration dampened operator handle, control panel with easy access.
• Hydrostatic control lever and adjusting lever.
• Two removable drum scrapers ensuring automatic cleaning.
• MAXIMUM SAFETY: dead man safety button.
• Hydraulic parking brake, reverse gear limited to 2.5 km/h.
• Adjustable amplitude on asphalt (13 kN) as well as on soil (21 kN).
• Anti corrosive oil tank.
| Machine Dimension – L x W x H (mm) | 2,095 x 980 x 2,568 |
|---|---|
| Drum Size – D x W (mm) | Width (900) Option(1000), Diameter (560), Shell Thickness (15) Side Clearance (40), Curb Clearance (337), Chamfered Edge Finishing |
| Operating Weight (kg) | 1,730 |
| Centrifugal Force (kN) | 16 |
| Vibration Frequency – Hz (vpm) | 66.7 (4,200) |
| Water Tank Capacity (L) | 110 |
| Hydraulic Oil Tank (L) | 30 |
| Fuel Tank Capacity (L) | 31 |
| Maximum Speed (km/h) | 10- Highest Speed |
| Height - Top of the Steering Wheel (mm) | 1,534 |
| Height - Top of the ROPS (mm) | 2,568 |
| Shipping Weight (kg) | 1,790 |
| Drum Weight (kg) | Static Front and Rear - 376 |
| Drum Wiper Type | Spring-Loaded Self-Adjusting Steel Wiper |
| Vibrating System | Nominal Amplitude 0.4, Gear Pump- POCLAIN® Hydraulics, FRANCE, Motors- CASAPPA®, ITALY |
| Vibrating Drums | Front/Both |
| Propulsion | DRUM DRIVE - Axial Piston Puump with Variable Displacement and 2 Radial Piston Motors from POCLAIN® Hydraulics, FRANCE |
| Brakes - Gradability (Theoretical) | 35° PARKING - SAHR (Spring-Applied Hydraulically Released) |
| Steering System and Design | 1 Cyclinder, Double-Acting Hydraulic System with a Maintenance-Free centre Pivot Articulation of ±30° Outside Turning Radius - 3,100 mm |
| Water System | Pressurised Electric Diaphragm Pump. Filters of 100 Mesh Screen@ Nozzle with 80 Mesh in-Line |
Fully hydrostatic, dual vibration system

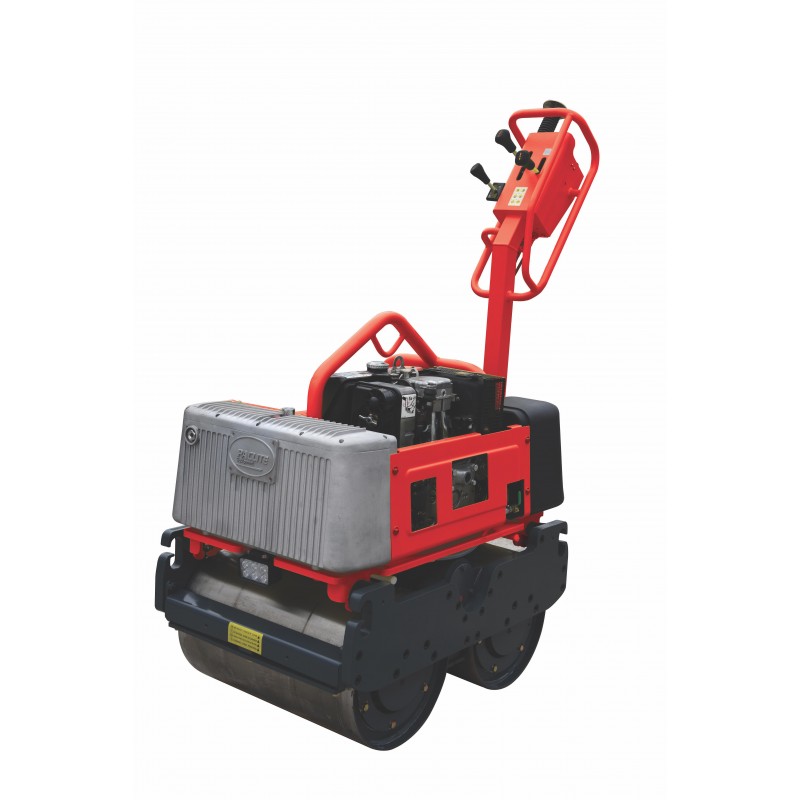

The innovative ROL700 walk behind roller helps you limit your machine investment. A double stage high-amplitude setting provides this walk-behind roller to perform custom built for both work on soils and aggregates. With the flip of a switch your operator can adjust to a low-amplitude setting and have a roller that is a perfect fit in asphalt and bituminous materials. This roller is equipped with the powerful Hatz 1 B50 engine with electric start and easy accessible control panel on steering handle. The drive and vibration are fully hydraulic, eliminating V-belt and clutch.
ROL700 features scrapers and a 50-litre water tank with sprinkler system to ensure the machine is ready to handle bituminous surfaces when called upon. This unique Hoppt roller offers perfect clearance on both drum sides, allowing compaction work extremely close to curbstones, retaining walls and other obstacles. No extra timeconsuming work on edges and in confined areas is needed. The hydraulic drive ensures variable speed adjustment and smooth starting/ braking action.
