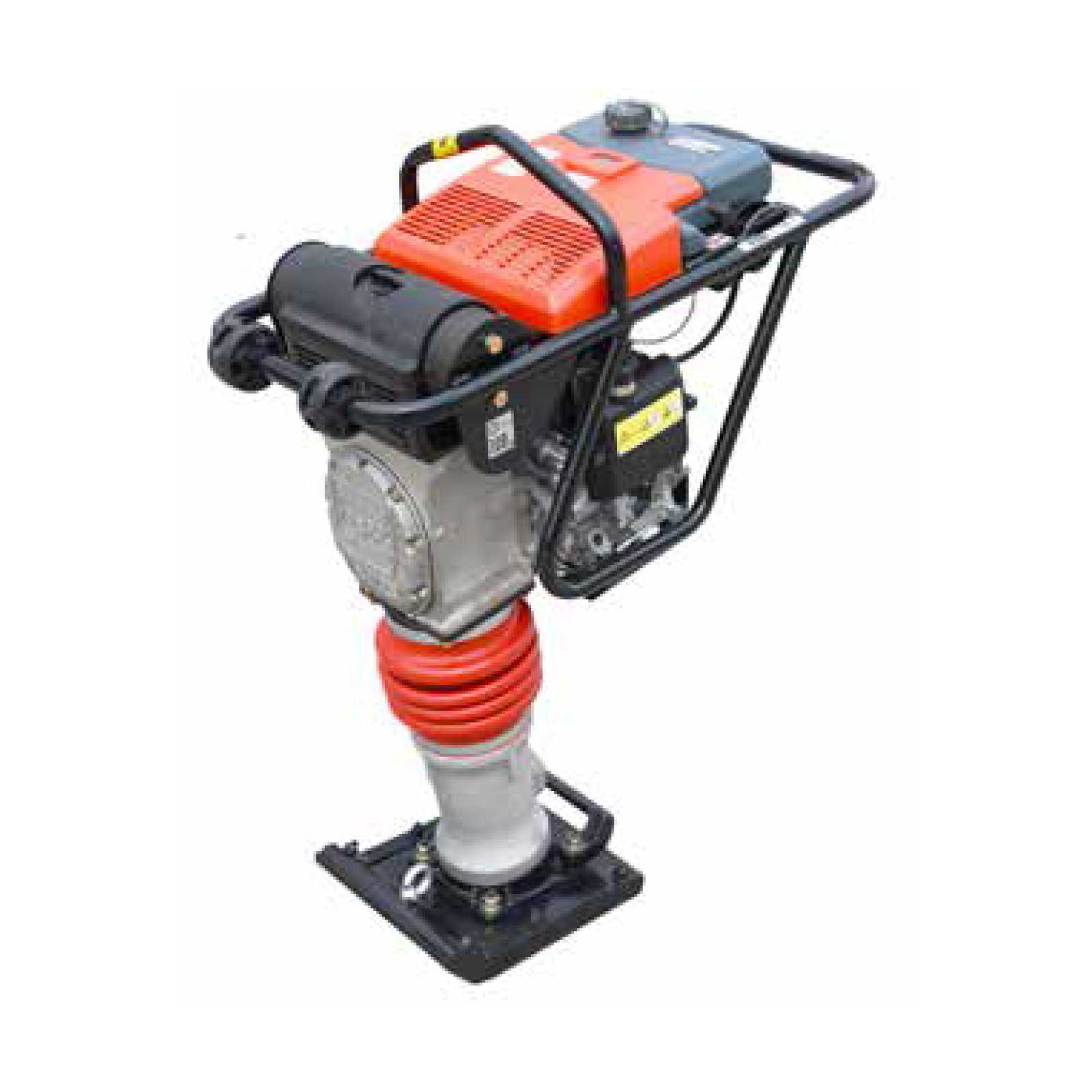

RAM60B - Tamping Rammers

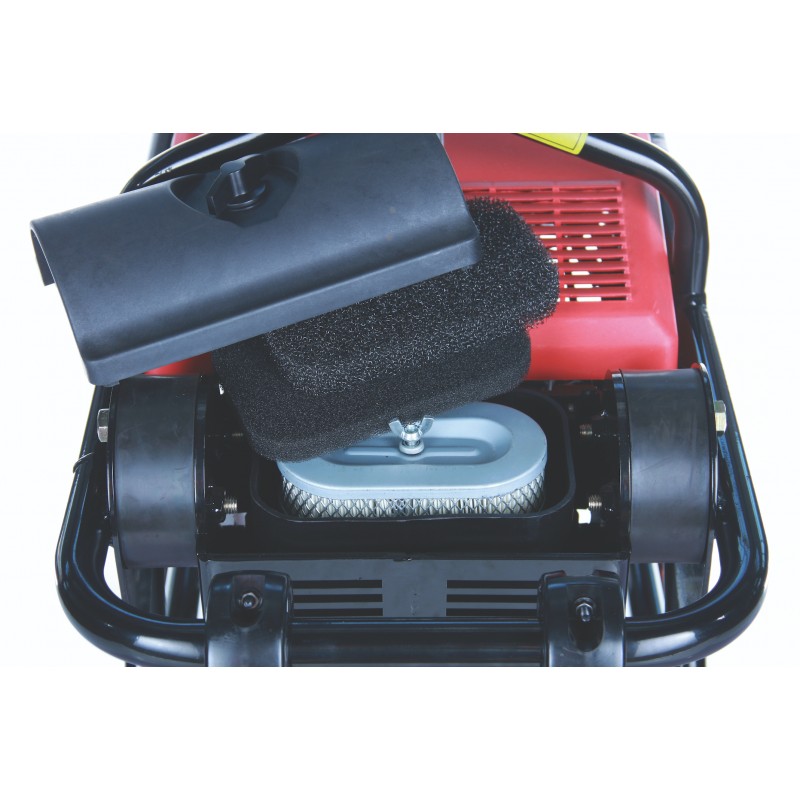

• They are well-balanced, light-weight and powerful to exert maximum power for the most demanding jobs efficiently. It is also fitted with a Triple Air-Filter System to prevent particulate matter (PM) from entering the engine's cylinder for cleaner fuel to prolong engine life.
• It could also be fitted with a HONDA® GX100 petrol engine, as an option.
• With a compact and appealing design, they have the same compaction capabilities as other rammers in our range. Many new features are also added to ensure maximum comfort and productivity.
Machine Dimension – L x W x H (mm) | 735 x 370 x 1,035 |
---|---|
Shoe Size – L x W (mm) | 340 x 275 |
Operating Weight (kg) | 69 |
Stroke (mm) | 50-70 |
Impact Force – kgf (kN) | 1,390 (14) |
Blows Per Minute | 650-700 |
Compaction Depth (mm) | 610 |
Maximum Working Speed (m/min) | 10-13 |
Compaction Area (m²/h) | 260 |
Fuel Tank Capacity (L) | 3.5 |
Engine Options | Honda GX100 @ 2.1 kW (2.8 hp) 4-Stroke Petrol ROBIN® EH09-2D @ 2.2kW (3.0hp) 4-Stroke Petrol, HONDA® GX100 @ 2.1kW (2.8hp) 4-Stroke Petrol |
Perfectly compacted soil which is a major component for any construction project. It provides a sturdy, impenetrable, and solid base necessary to support footings and foundations. Heavy duty and solid, our Hoppt engine driven rammers are the perfect construction equipment for compacting trenches, foundations, footings, or retaining walls. Our engine driven rammers work well with cohesive or mixed soil material where the high clay contents consist of small particles and low internal friction. Containing minimal moisture, they can be compressed adequately and are impermeable when compacted.
HOPPT® RAM60B and RAM70C are the Latest Additions to the Rammer's range: Powered by the ROBIN® EH09 and EH12 Petrol engines, specially-engineered for Rammers.
