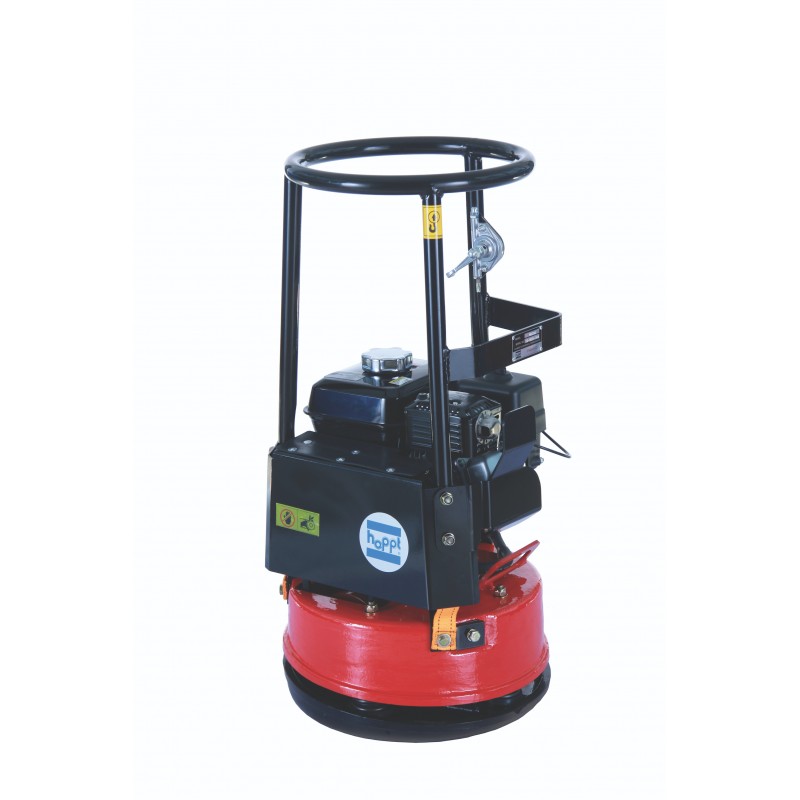

RBC90- Vibratory Forward Plate Compactors
Features and Benefits:
• Straight, centre-mounted guide handle offers superior manoeuvrability and can be lowered within centimetre of the surface to operate plate under obstacles and form work.
• Many lifting points and front lift cage offer easier loading and unloading for operator convenience.
• Compact design, easy to use, cast bottom plate.
• Smooth and flexible.
• Throttle mounted on the operating handle.
|Machine Dimension – L x W x H (mm)||460 x 460 x 950|
|Plate Size - L x W (mm)||460 x 460|
|Operating Weight (kg)||96|
|Centrifugal Force – kgf (kN)||1,640 (16.0)|
|Vibration Frequency – Hz (vpm)||75 (4,500)|
|Maximum Gradeability - (°)||20|
|Maximum Working Speed (m/min)||22|
|Compaction Area (m²/h)||500 - 600|
|Engine Options||Honda GX160 @ 3.6kW (4.8hp) 4-Stroke Petrol
Robin EX17 @ 4.2kW (6.0hp) 4-Stroke Petrol
Robin EY20-3C @ 3.7kW (5.0hp) 4-Stroke Petrol
HOPPT® Forward Plate Compactors feature a compact yet robust design with low hand-arm vibration handle; and offering choices of compacting force, different plate sizes depending on the application and material to compact for your job needs. Especially designed for use in narrow trenches, interlocking blocks, landscaping, footpath construction and maintenance, small to medium scale patchwork, repair and maintenance of sand, gravel and asphalt in restricted area and along obstacles such as curbs
