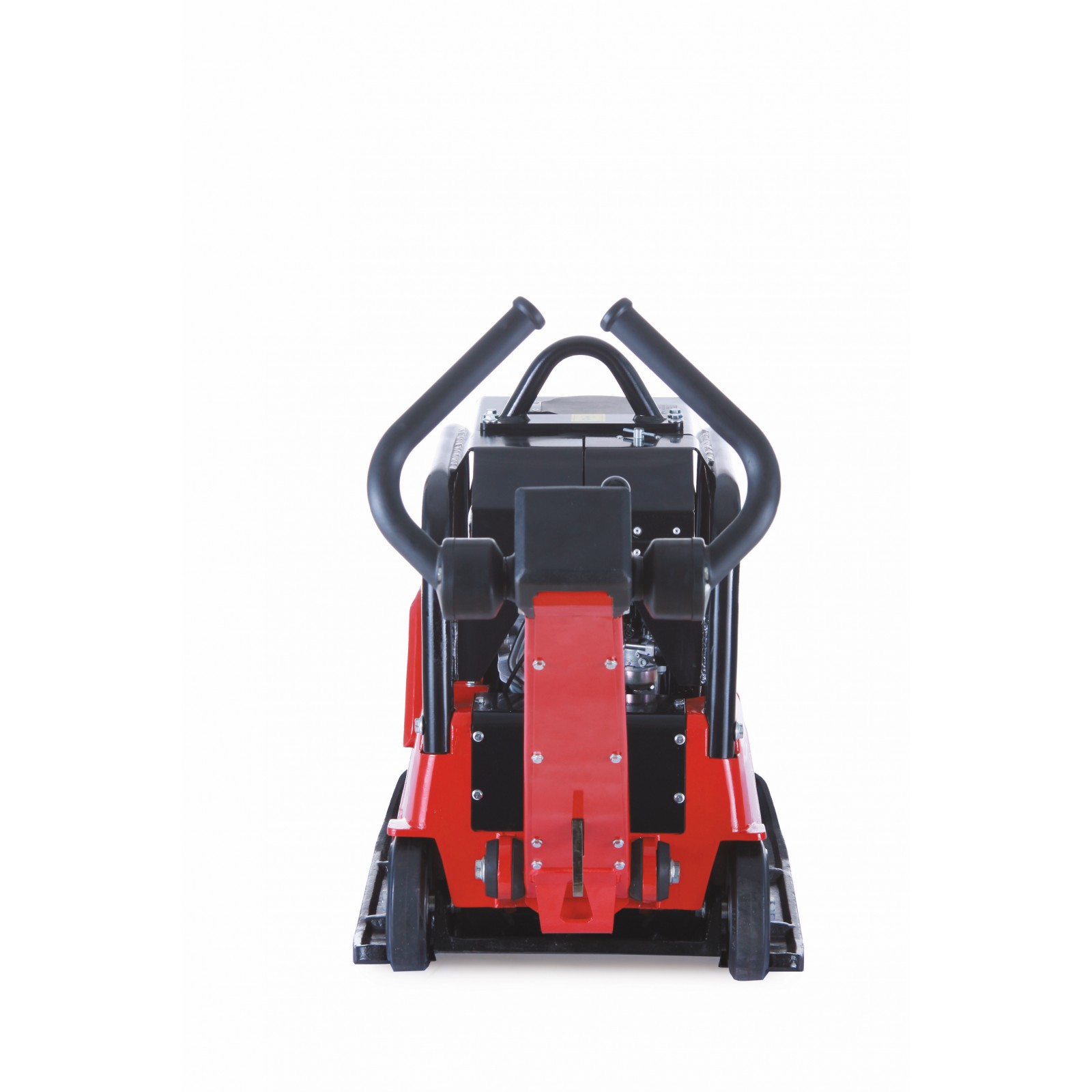

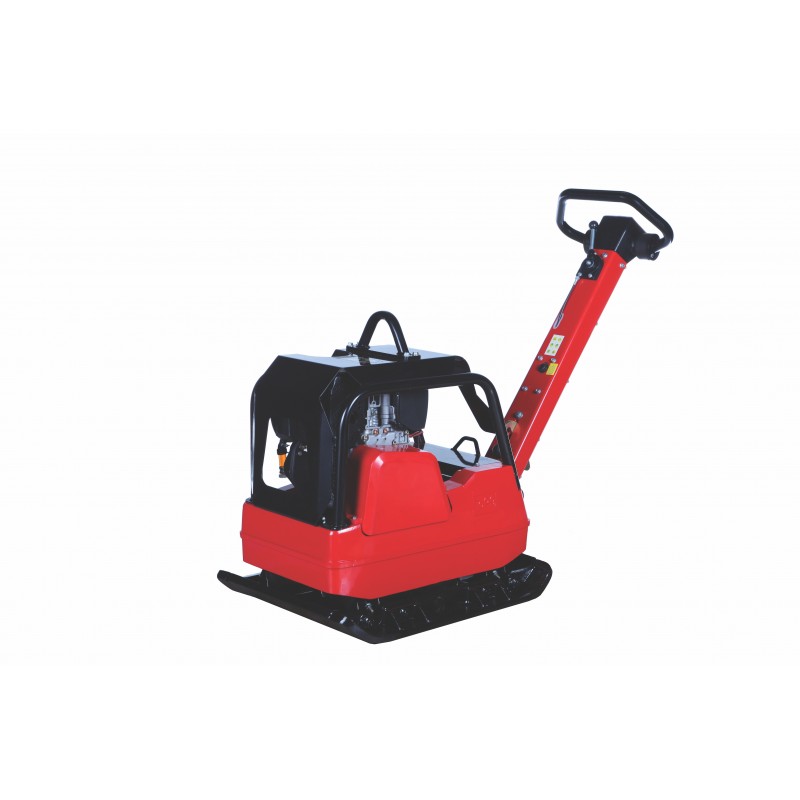

CPT300 - Vibratory Reversible Plate Compactor
|Machine Dimension – L x W x H (mm)||1,494 x 640 x 1,218|
|Plate Size - L x W (mm)||800 x 470 (Extended 800 x 640)|
|Operating Weight (kg)||300 (Petrol)
|Centrifugal Force – kgf (kN)||4,078 (40)|
|Vibration Frequency – Hz (vpm)||70 (4,200)|
|Maximum Gradeability - (°)||30|
|Maximum Working Speed (m/min)||22|
|Compaction Area (m²/h)||792|

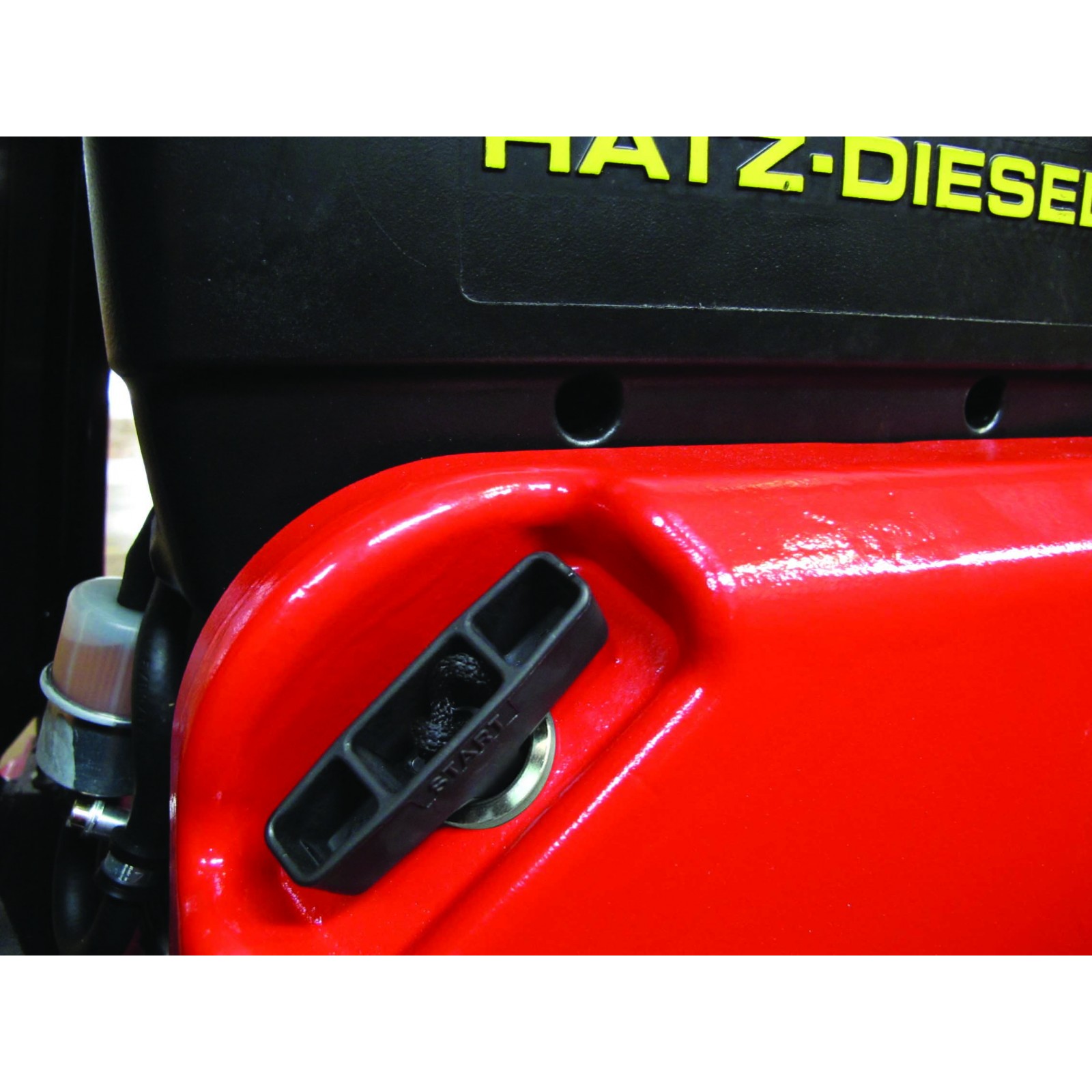

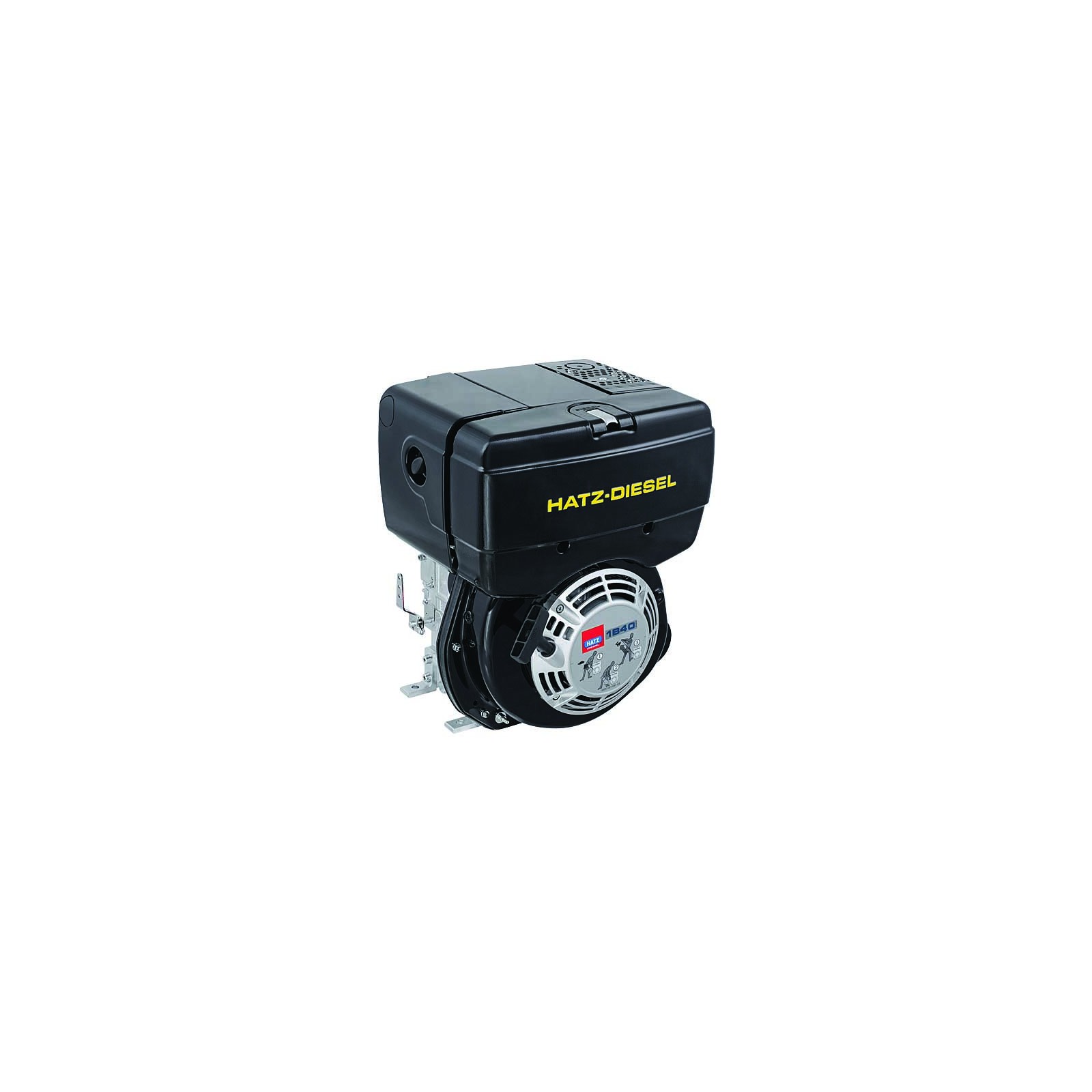

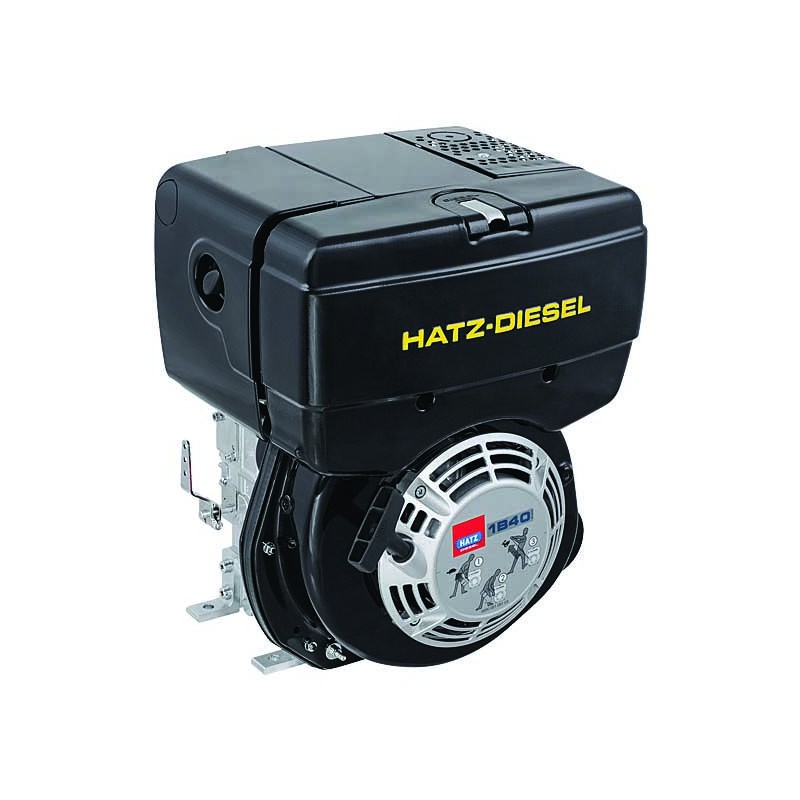

|Engine Options||Hatz 1B30 @ 5.4kW (7.3hp) 4-Stroke Diesel (Recoil & Electric-Start)
Honda GX270 @ 6.3kW (8.5hp) 4-Stroke Petrol
• HOPPT® Range of Reversible Plate Compactors feature the Dual-Directional Compaction Solutions for job sites with various weight-class and different baseplate sizes to choose from.
• The cast iron base-plate is designed to provide excellent stability during operation, and to ensure smooth forward and reverse motion. They come with engine options for all kinds of work conditions to deliver maximum compaction force and productivity.
• HOPPT® Reversible Plate Compactors have excellent compaction force for backfill footings, foundations, trenches. Also, the compaction of base-material for driveways, side-walks and in confined area.
