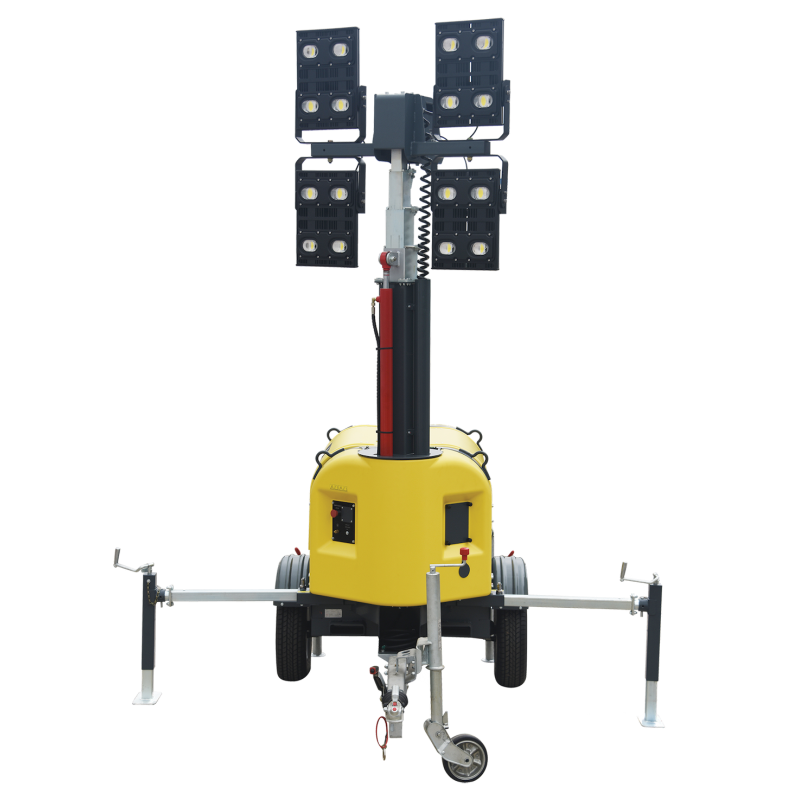

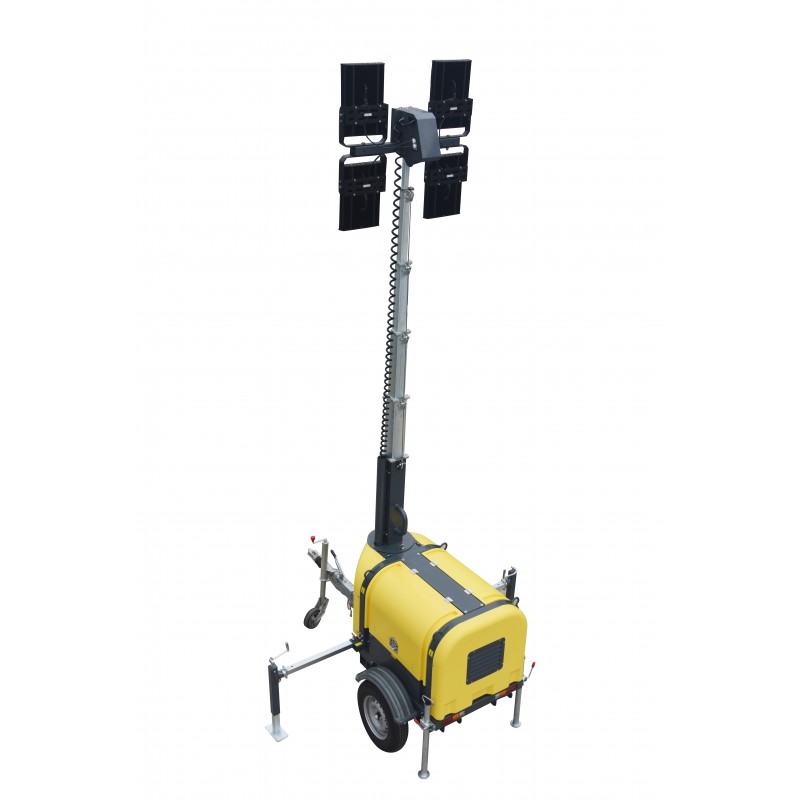

HLT8-1.4LED - Hydraulic-Mast Light Towers (LED)

Features and Benefits:

Centrally placed lifting points and inserts for forklift

 Compact dimensions in transport thanks to its telescopic design

 Epoxy powder paint for hardness and strength, the best against ultraviolet light and corrosion.

 Bigger capacity fuel tank of 125 Litre which allows for longer running time hence increasing productivity.

Dimensions - L X W X H (MM) 404 x 260 x 328
Minimum Dimension - L x W x H (mm) 2,740 x 1,435 x 2,960
Maximum Dimension - L x W x H (mm) 2,740 x 2,675 x 7,960
Dry Weight (kg) 750 kg
Frequency (rpm) 50Hz
Fuel Tank Capacity (L) 125L
Maximum Height 8 m
Raising Hydraulic
Rotation Section 340 degree
Maximum Wind Stability 80 km/hr
Power 5kw
Cooling Air
Fuel Diesel
Starting System Electric
Oil Sump Capacity 1.0 Litre
Consumption 263g/kwh
Noise Level 101Lwa
Battery 12v-55Ah
Single Phase Voltage 3.6kVA - 240 V
Cos 0.8
Mechanical Protection IP 21
Type of Light LED
Number & Power of Light 4 x 350 w
Degree of Protection IP 67
Constructor Material of the Body Die-Cast Aluminium
Constructor Material of Lampholder Die-Cast Aluminium
Cable Gland Plastic
Optical Case Opening System Stainless Steel Clips
Governed Engine Speed Max. 3200rpm

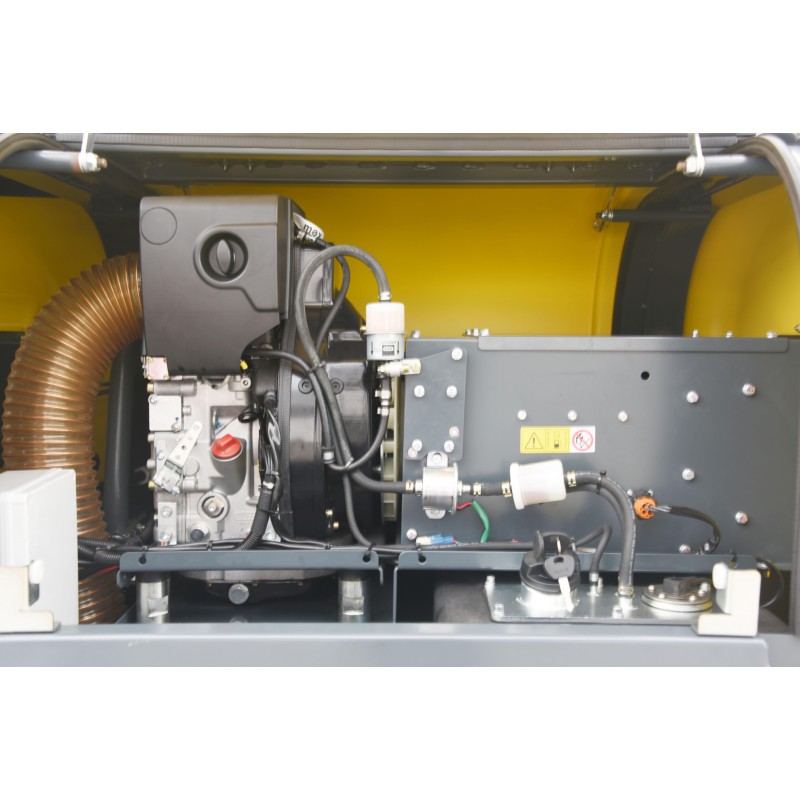

Engine Options Hartz 1B30X-PMG
More Info

Hoppt HLT8-1.4LED offers the latest design and lowest fuel consumption in LED light towers that construction, sites, outdoor events and industries worldwide have been requesting for. We have coupled the lowest fuel consumption with the market's most powerful 4 x 350LED lamps ever before seen. These products provide outstanding value and efficiency for our customers.

Powered by: Hartz Engines German Flag
