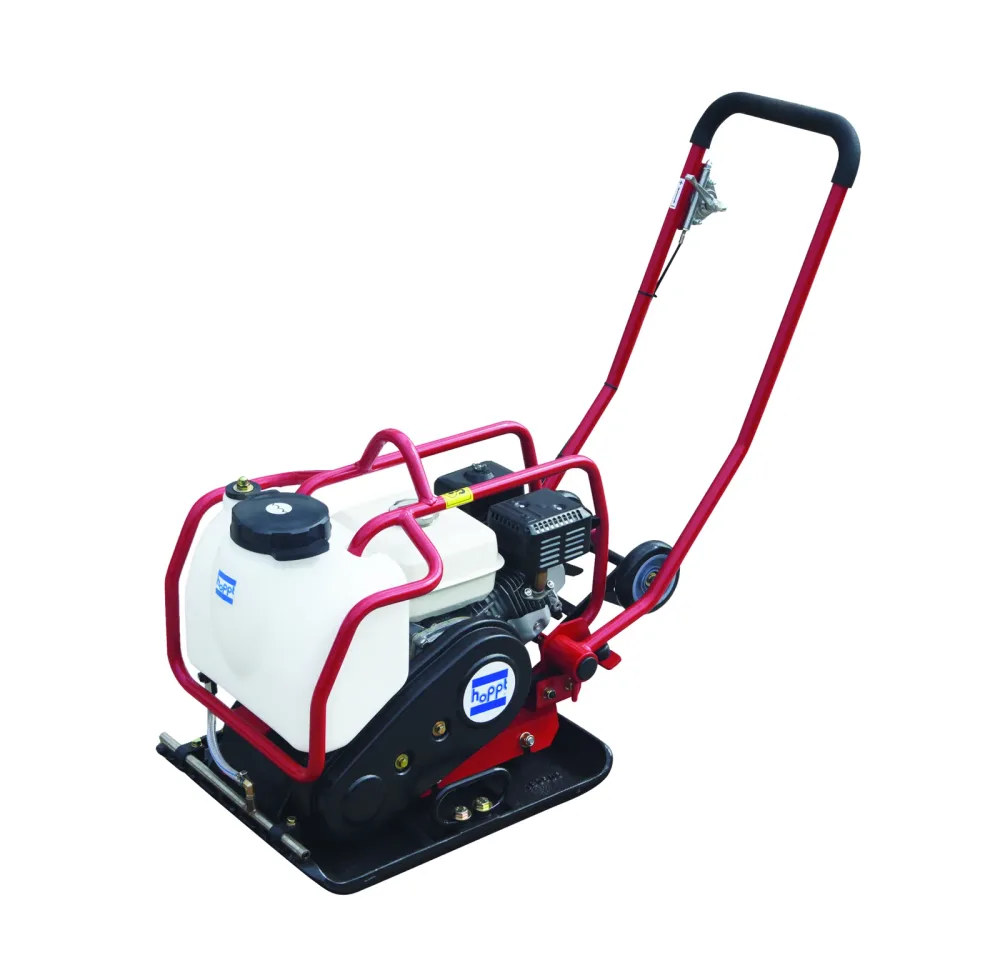

Features and Benefits: • Straight, centre-mounted guide handle offers superior manoeuvrability and can be lowered within centimetre of the surface to operate plate under obstacles and form work. • Many lifting points and front lift cage offer easier loading and unloading for operator convenience. • Compact design, easy to use, cast bottom plate. • Smooth and flexible. • Throttle mounted on the operating handle.
| Machine Dimension – L x W x H (mm) | 1,101 × 460 × 1,020 |
| Operating Weight – (kg) | 92 |
| Plate Size – L x W (mm) | 571 × 460 |
| Vibrating Frequency – Hz (vpm) | 95 |
| Centrifugal Force – kgf (kN) | 14 |
| Compaction Area – (m²/h) | 685 |
| Compaction Depth – (mm) | 350 |
| Maximum Gradeability – (°) | 20 |
| Maximum Working Speed – (m/min) | 21 |
| Water Tank Capacity – (litre) | 13 |
| Engine | ROBIN® EY20-3C @ 3.7kW (5.0hp) 4-Stroke PetrolHONDA® GX160 @ 3.6kW (4.8hp) 4-Stroke Petrol |
