ROL300S - Single-drum Dual-directional Vibratory Roller

Home›Products›Compaction›Single-drum Dual-directional Vibratory Roller›ROL300S - Single-drum Dual-directional Vibratory Roller

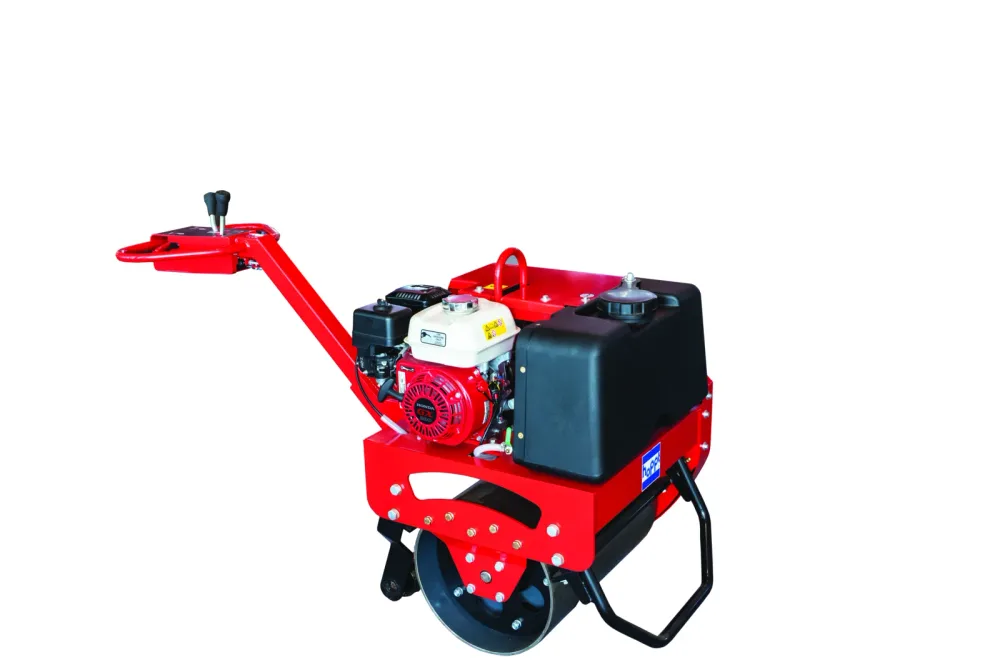

ROL300S - Single-drum Dual-directional Vibratory Roller — view 1 of 2
Stage 03 · Compaction

ROL300S - Single-drum Dual-directional Vibratory Roller

A Single-Drum Dual-Directional Vibratory Roller is primarily used for soil compaction in large-scale projects like road construction, parking lots, and building foundations. Here’s a breakdown of its features and functionality: • This roller has one large drum located at the front of the machine, which performs the compaction. This drum uses weight and vibration to compact the soil beneath it. • It uses vibrations to compact the soil, which is more effective than just static weight compaction. The vibrations reduce the spaces between particles, increasing the density of the ground. • These rollers are commonly used on loose soils such as gravel, sand, or mixed materials and are essential for creating a firm, stable surface for construction projects.

Specifications

10 rows
Specifications
Dimensions Packing – L x W x H (mm)1,750 × 720 × 1407
Dimensions Straight – L x W x H (mm)1,750 × 720 × 1096
Operating Weight – (kg)295
Drum Size – D x W (mm)402 × 595
Centrifugal Force – kgf (kN)1,070 (10.5)
Vibration Frequency – Hz (vpm)72
Maximum Working Speed – (km/h)6.5
Gradeability – (°)20
Water Tank Capacity – (litre)35
EngineHONDA® GX200 – 4.1kW (5.5hp) 4-Stroke Petrol
