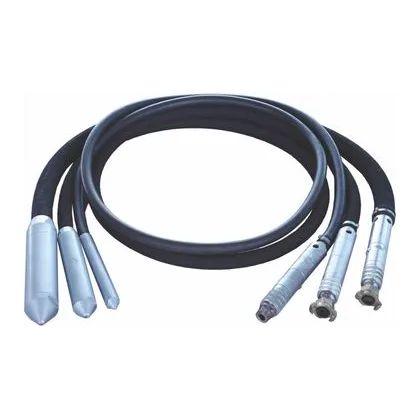

HAV65 - Air-Powered Concrete Vibrators

Home›Products›Concreting›Air-powered Concrete Vibrators›HAV65 - Air-Powered Concrete Vibrators

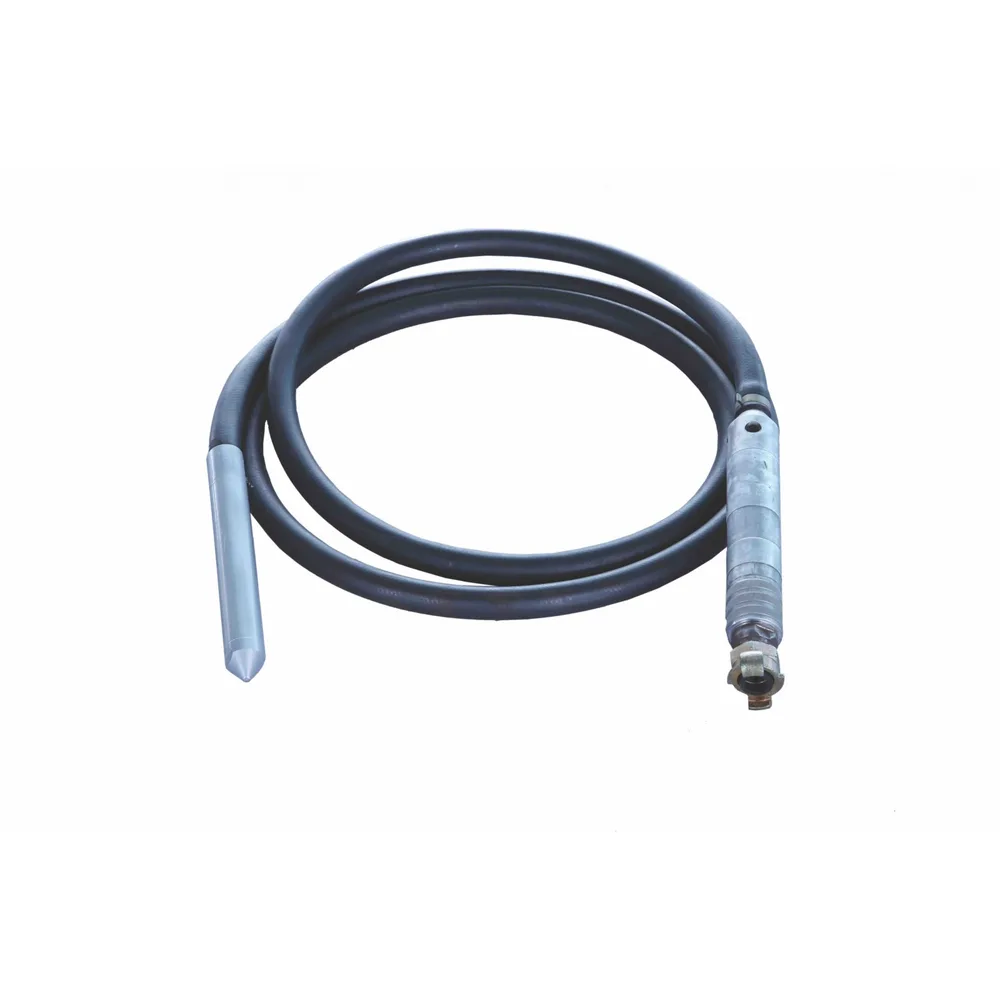

HAV65 - Air-Powered Concrete Vibrators — view 1 of 2
Stage 05 · ConcretingAir-powered

HAV65 - Air-Powered Concrete Vibrators

All our Air-Powered equipment are powered by special air kits and have the same characteristics as the petrol or diesel engines in their respective range.

Specifications

8 rows
Specifications
Vib. Head Diameter – (mm)65
Vib. Head Weight – (kg)7.9
Vib. Head Length – (mm)327
Amplitude – (mm)0.9
Frequency – (rpm)18,000
Air Consumption – (m³/min)1.0
Hose Length – (m)4
NoteConversion: 1 cfm = 0.028317 m³/min
