VIB28 - Concrete Vibrators

Featuring the Industry's most durable and strongest flexible rubber hose whereby the outer is constructed of steel flat wire covered by alternating layers of wire mesh and rubber; you have the BEST Concrete Vibrator in YOUR HANDS.

Specifications
VIB28
Operating Weight (kg) 18
Amplitude (mm) 1.1
Flexible Shaft/Hose Length (m) 6.0
Shaft Revolution (rpm) 3,000
Vibrating Frequency - (vpm) 163 - 208 (9,800 - 12,500)
Head Dimension - ∅ x L (mm) 28 x 460

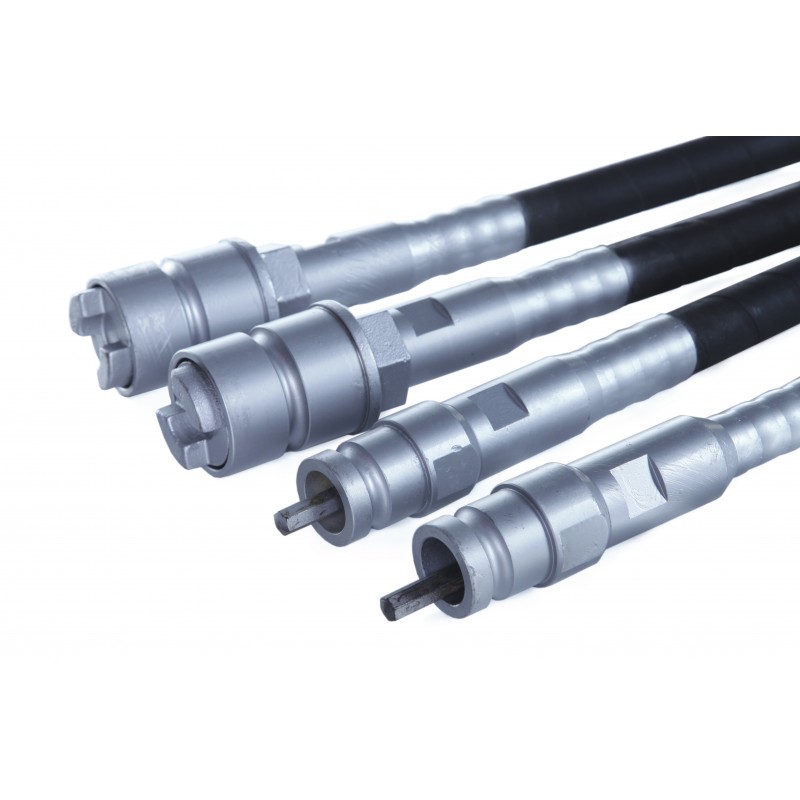

Coupling Type Hoppt Twin Claw/Three-Dog

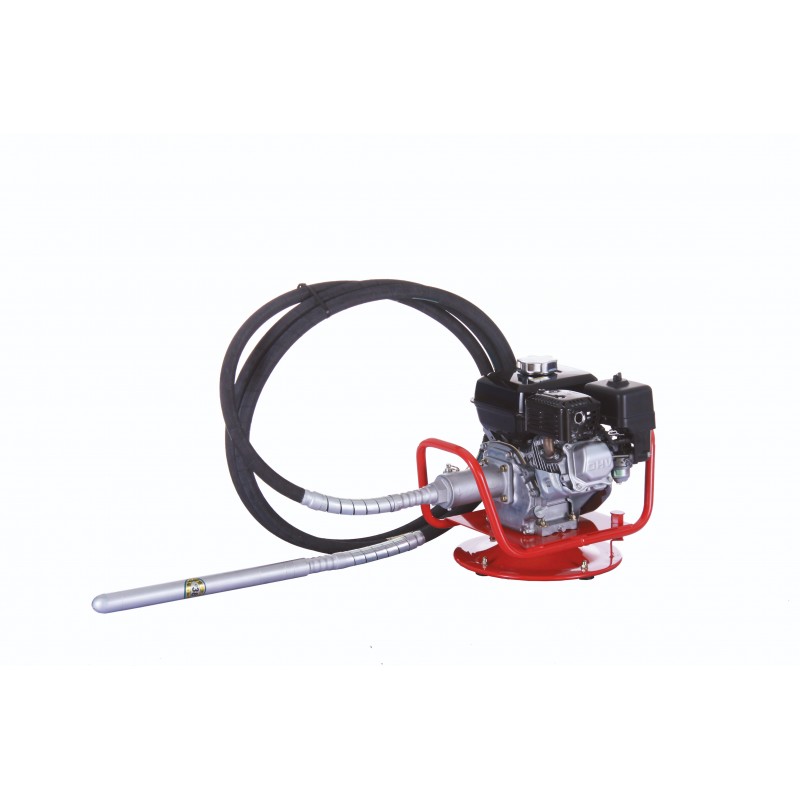

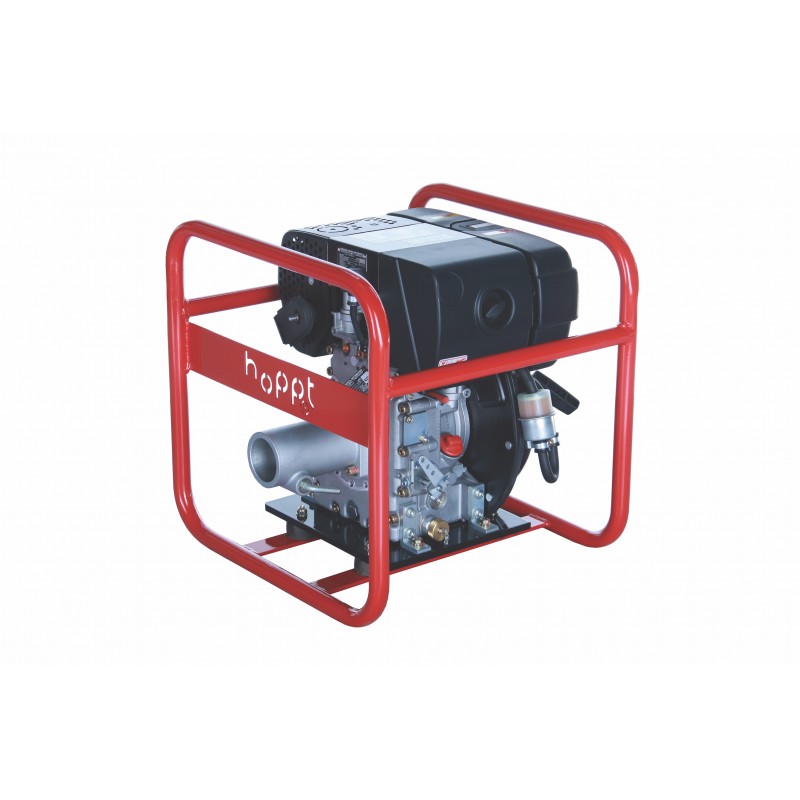

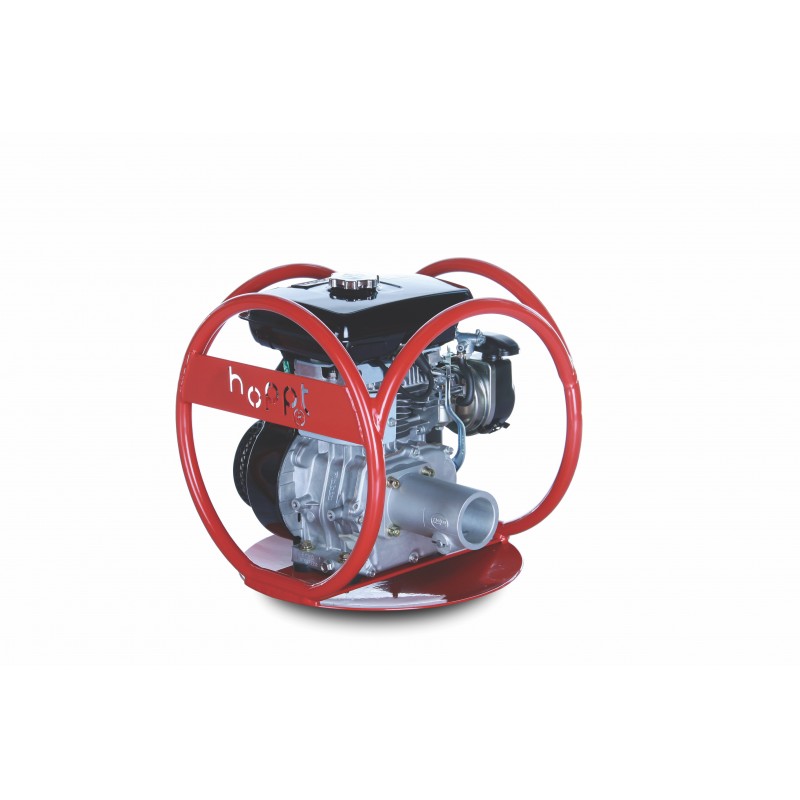

Drive Unit Engine Honda GX 160 / Robin EX17 or EY20-3C / Hatz 1B20
Drive Unit Engine Type GX160 or EX17 or EY-20-3C (4Stroke Petrol)/ 1B20 (4 Stroke Petrol)
Drive Unit Maximum Power Output - hp (kW) GX160 @ 4.8 (3.6kW) / EX17 @ 6.0 (4.2kW) / 1B20 @ 4.6 (3.5kW)
More Info

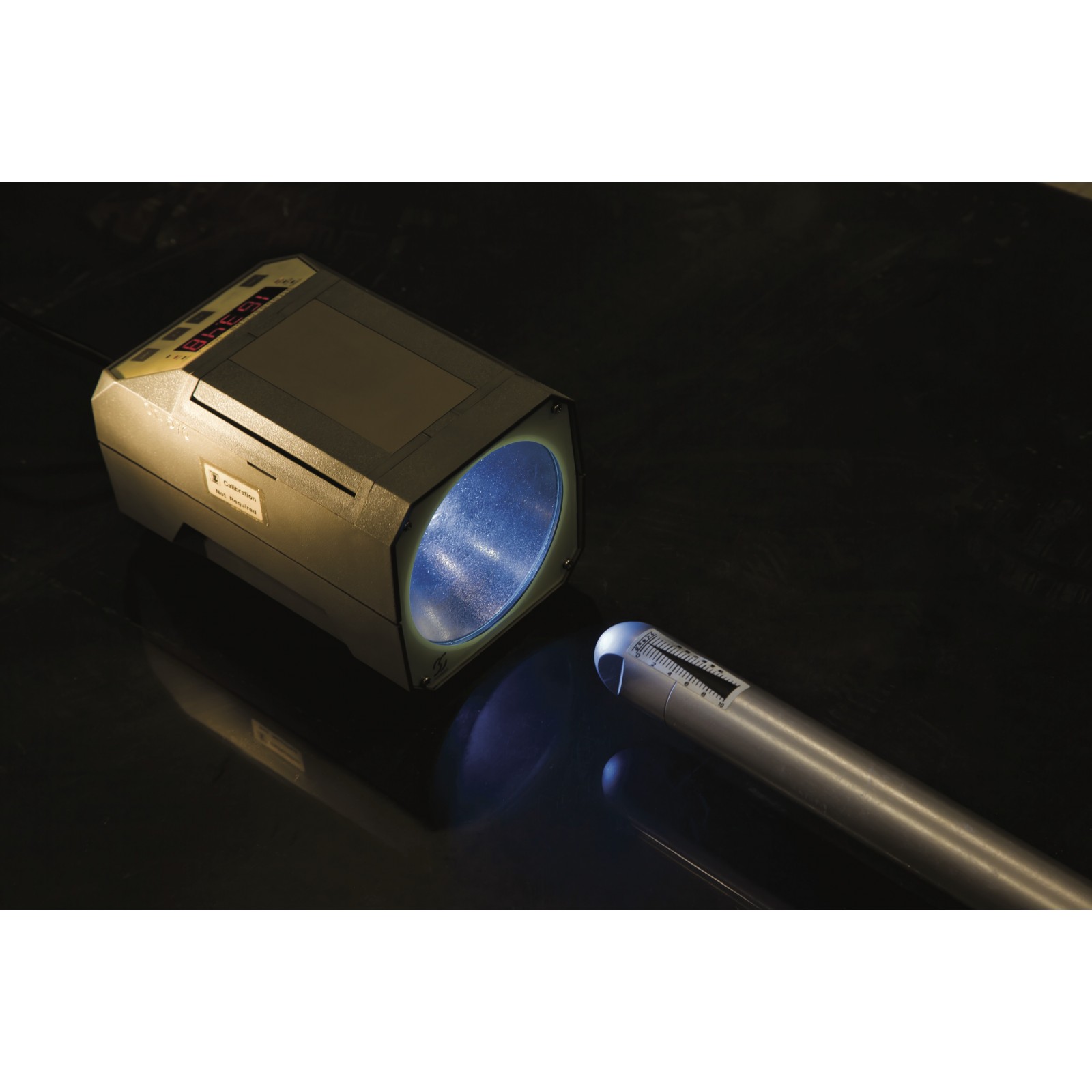

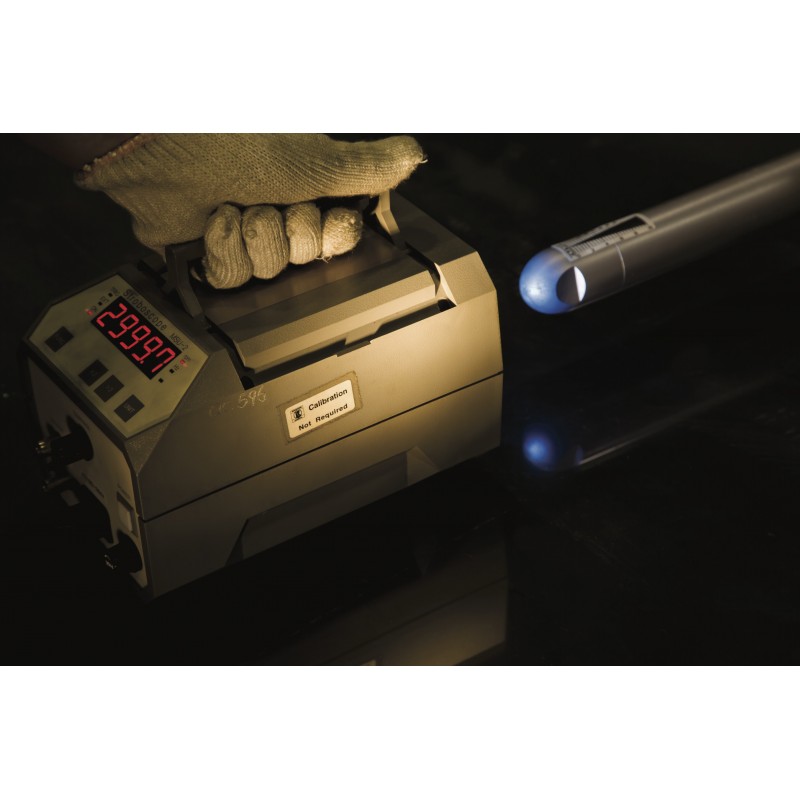

Hoppt VIB38 Range of Concrete Vibrators with flexible shaft are built, using the pendulum principal. The vibration and rotational speed of the vibrator head is properly analysed and synchronised by using a Stroboscope for the correct functioning of the device.

They are designed to work from low, medium to high-slump concrete. APplication includes small pours, slabs driveways, sterns walls, columns and footings. Offering various diameter sizes of steel vibrator head and flexible hose length to different kinds of coupling; and delivering optimum frequency to cater for different needs in site applications efficiently.
